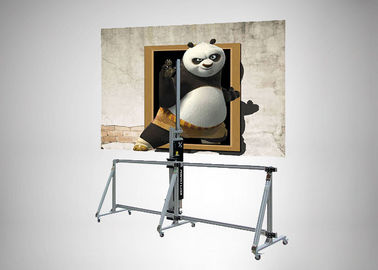

Introduction of Vertical Printer
The HD version of the inkjet wall printer is a product,that meets customers' demands of large-area & high-definition color painting. The product is easy to operate, just put the picture into the machine, you can get satisfied decorative photo,automatic operation, no drawing experience.This printer direct to wall,is with higher precision and faster speed.The body of inkjet wall printer is made of aluminum-magnesium ,which is light and easy to carry.It adopts Japanese nozzles,high-definition picture and durable.This PE-S40 is equipped with American import sensing system,double sensors, two-way up and down induction,and automatic positioning. Which can effectively protects the nozzle from damage and prolongs the service life.
Product features of Vertical Printer
1.The printer is equipped with the American import sensing system, uses the high precision DC brushless servo motor to control this system,High precision, fast speed, and maintenance free.
2.The printer can be painted in large size, the height can reach 2000mm, the width is not limited, no need to move the machine.
3.The printer uses synthetic pigment wall painting special ink, made with imported color paste. It can work normally in the environment of minus 10 ° C to zero 60 ° C, with bright colors, strong stereoscopic effect and no fading.
4.The printer equipped with complement graph system, in the course of work, encountering power failure or the other conditions lead to construction interruption, which can reduce the scrapping rate of painting.
5.The printer supports JPG, BMP, TIFF, PDF, AI, PSD, CDR and other image formats (some formats need to be converted).
6. The printer uses multi-color one-piece ink supply system, stable and fast, can add ink at any time, very convenient.
1. Inner and outer walls, cement walls, brick walls, putty walls, latex paint walls, imitation porcelain walls, etc.
2. Tiles, glass, rice paper,sketchpad, etc.
Technical data of Vertical Printer:
| Model | PE-S40 Vertical Printer | ||||
| Ink | Special ink for synthetic pigment wall painting | ||||
| Assembly method | Self steering fastener, pulley, track fastener, quick disassembly and assembly | ||||
| Control mode | Wired handle, wired control | ||||
| Motor technology | DC brushless servo motor, vector positioning technology, five star grating | ||||
| Feeding system | Negative pressure automatic feeding, 340ml pigment library, multi-color one, special color for, with a sealed plug and dust cover | ||||
| Painting speed | High, medium, low, three-speed adjustable | ||||
| Painting resolution | 720*300dpior720*600dpior720*1200dpior720*2400dpi | ||||
| Picture type | Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files (some formats need to be converted) | ||||
| Actual painted size | Height 2000mm, wide width can be extended | ||||
| Power Supply | AC110V(90-132V)/AC220V(180-264V)AC,47-63HZ | ||||
| Power consumption | No-load 20W, general 75W, Max to 250W | ||||
| Noise | Standby <20dBA, drawing <50dBA | ||||
| Operation | -10℃-60℃(14℉-140℉)10%-80% relative humidity, non condensable state | ||||
| Storage | -30℃-60℃(-22℉-140℉)10%-80% relative humidity, non condensable state | ||||
| System platform | Windows XP/Win 7/Win 8/Win 9/Win 10 | ||||
| Motherboard configuration | Sextuple CPU, 1GBDDR memory, USB2.0/3.0 data interface | ||||
| Machine language | Chinese,English(Customizable) | ||||
| Print mode | Pass | Speed (per square meter per hour) | |||
| Quick mode | A | 9 Plane / hour | |||
| Production model | B | 5 Plane / hour | |||
| Quality model | C | 4 Plane / hour | |||
| High precision model | D | 3 Plane / hour | |||
| Equipment appearance | Actual size | Machine package size | Cross track packing size | ||
| Length | 3000mm | Length 2610mm | Length1200mm | ||
| Width | 670mm | Width 450mm | Width 900mm | ||
| Height | 2640mm | Height 560mm | Height390mm | ||
| Weight | 60kg | Rack packing weight 61kg | Cross track packing weight 56kg | ||
| Package type | Wooden box | ||||
| Note: the above technical parameters shall be the design parameters. If there is any difference, the actual use efficiency of the equipment shall prevail. | |||||
