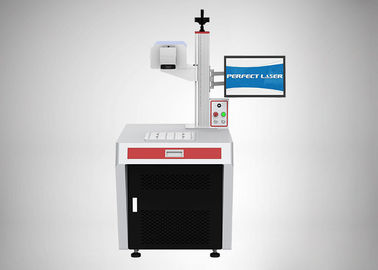

3D UV Laser Engraving Machine 335nm Laser Wave 10-120khz For Glass Material

3D UV Laser Engraving Machine 335nm Laser Wave 10-120khz For Glass Material
3D UV Laser Engraving Machine 335nm Laser Wave 10-120khz For Glass Material

Large Image :  3D UV Laser Engraving Machine 335nm Laser Wave 10-120khz For Glass Material

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA
Model Number: PE-UV-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: US $9999 - 18800 / Unit
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 7-15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 Unit per Month
Detailed Product Description
Power Demand: 100-240v Single Phase,50-60hz Pulse Width: <25ns@30khz
Pulse Repetition Frequency: 10-120khz Spot Diameter: 1.0mm(+/-0.1)
Spot Quality(㎡): <1.2 Laser Output Power: 3w/5w/10w@30khz
Keywords: UV Laser Engraving Machine Minimum Character: 0.2mm
Minimum Line Width: 0.015mm Laser Wavelength: 335nm
Highlight:

fiber laser marking machine

,

laser marking equipment

3D UV Laser Engraving Machine For Glass Material With 335nm Laser Wave

(Model:PE-UV-3D)

Introduction of UV Laser Engraving Machine

The PE-UV-3D uv laser engraving machine uses imported high quality UV laser source with the features of stable output power, good optical mode, excellent beam quality and fast marking speed. Its good effect and high efficiency can fully meet the high-volume production demand of customers. With nice beam quality, the uv laser engraving machine creates fine marking effect.



Features of UV Laser Engraving Machine

1. The uv laser engraving machine has beautiful appearance, simple operation with no consumables, low depreciation cost, long-term operation without trouble, maintenance-free. Thus, it can fully meet the needs of industrial continuous work.

2.The uv laser engraving machine is a high-tech product integrating laser, computer, automatic control and precision mechanical technology, which can provide extremely high peak power and good beam quality.

3. The uv laser engraving machine is fast, easy to maintain, long in service life, compact in size. It saves floor space and suitable for work in harsh environments.

4.The uv laser engraving machine has economic configuration, excellent performance, reliable quality and high cost performance.

5. Let the marking boundary no longer be "ignored"! - The marking effect of each position on the workpiece is uniform and consistent;

6. 355nm output wavelength reduces the thermal impact on the workpiece, the heat affected area is very small, there is no thermal effect, the material is not deformed and not burnt;

7. The uv laser engraving machine adopts the upper and lower sliding door closed processing in the design, and the uv laser marker uses the high-quality special filter to protect the plexiglass to make a special observation window to create the ultimate protective performance of the whole machine;

8. The uv laser engraving machine can be equipped with optional auto lifting, rotating and other functions.



Application of UV Laser Engraving Machine

The uv laser engraving machine is mainly used for fine marking and engraving. It is especially suitable for applications such as food, pharmaceutical packaging materials, micro-holes, high-speed division of glass materials and complex graphic cutting of silicon wafers.



Technical Data of UV Laser Engraving Machine

Model PE-UV-3D
Laser wavelength 335nm
Minimum line width 0.015mm
Minimum character 0.2mm
Laser output power 3w/5w/10w@30khz
Spot quality(㎡) <1.2
Spot diameter 1.0mm(+/-0.1)
Pulse repetition frequency 10-120khz
Pulse width <25ns@30khz
Power demand 100-240v single phase,50-60hz



Sample Show of UV Laser Engraving Machine



3D UV Laser Engraving Machine 335nm Laser Wave 10-120khz For Glass Material 03D UV Laser Engraving Machine 335nm Laser Wave 10-120khz For Glass Material 1

Packaging & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
