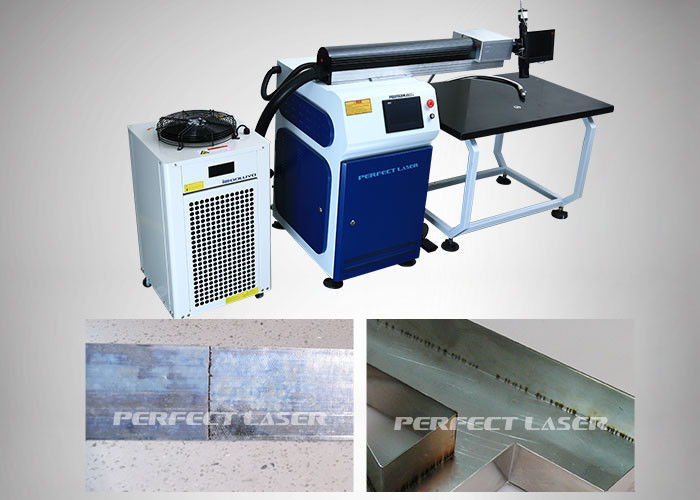

High Speed Double Path Laser Welding Machine For Stainless Steel CE Approved

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Speed Double Path Laser Welding Machine For Stainless Steel CE Approved

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA / SGS / TUV
Model Number: PE-W300II 500II
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-10 Working Days
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 3000 Unit per Month
Detailed Product Description
Cooling Type: Water Cooling Max. Output Power: 8KW
Power Consumed: ≤9KW Working Area: 750*1000
Certification: CE / ISO / FDA SGS / TUV Pulse Width: 0.3-20ms
Welding Frequency: 0.5-40HZ Adjustable Facular Size: 0.2-2mm
Mobile Level: 200mm 2-linertary: 200mm
High Light:

laser welding equipment

,

automatic laser welding machine

High Speed Double Path Welding Machine For Stainless Steel with CE Approved

Product Introduction of Welding Machine

Laser welding machine, also known as channel letter laser welding machine, is the application of high-energy pulsed laser to weld objects. Perfect Laser is dedicated to the development of laser technology. It is one of the earliest professional manufacturers of laser welding machine in China. The product performance is stable and fully meets customer needs. PE-W300II 500II is a double path channel letter welding machine. It is a laser high-energy and concentrated fixed-point welding technology, which effectively handles all the tiny parts of the welding, making up for the shortcomings of traditional soldering and argon arc welding technology, avoiding heat. It is environmental protection and pollution-free, greatly improve the connection strength and quality of metal characters or signs.



Features of Welding Machine

1.800*1000mm standard working platform, well placing channel letters;

2. Local heat treatment of metal characters;

3.Processing parts with complex shapes and tiny characters;

4. Noise-free and has no pollution to the environment;

5. CCD screen + red dot pointer positioning, reduce the friction of the plate when welding the letters. There is no need to adjust the spot position at the corner of the font;

6. Due to advanced processing methods, the quality of existing metal characters has been greatly improved;

7. UK imported “Morgen” Brand laser cavity can weld channel letters which is difficult to solder aluminum for other brands.


Application of Welding Machine
Used in logo production, boutique channel letter welding, metal channel letter welding and suitable for copper channel letter factory, advertising display production company, etc.



Specifications of Welding Machine

Model PE-W300I PE-W400I PE-W300II PE-W500II
name 300W Laser welding machine 400W Laser welding machine 300W Double light path Laser welding machine hand held 500W Double light path Laser welding machine hand held
Custom Code 8515800090 or 8515809090(the other welding machine and equipment)
Machinery Part Laser cavity length of 1100 mm, the laser head can rotate 360 degrees.
Working Area 750*1000MM
Load Bearing ≤200KG
Machine power supply 220V±10%/50/60Hz 380V±10%/50/60Hz 220V±10%/50/60Hz 380V±10%/50/60Hz
Laser Type Nd:YAG impulse xenon lamp
Spot Size 0.2-3.0mm
Laser Wave Length 1064nm
Impulse width ≤10ms
Laser Power 300W 400W 300W 500W
single pulse energy 90J 120J 90J 120J
Impulse Rate ≤30Hz ≤50Hz ≤30Hz ≤50Hz
Laser output focal length 150-250mm 150-250mm

150-250mm

Lase head 120mm

150-250mm

Laser head120mm

Laser Cooling Water cooling
Cooling Capacity 2700W 5000W 2700W 5000W
Total power <7KW <12KW <7KW <12KW
Viewing System CCD

Machine Size

Water Chiller

1400*800*1100mm

600*420*750mm

1500*800*1100mm

900*600*950mm



1400*800*1140

600*420*750mm

1450*800*1100mm

900*600*950mm



Package Size(machine body)

1500*830*1240mm



1600*800*1240mm

960*760*1150mm



1500*830*1280mm



1530*810*1200mm

960*760*1150mm



Gross Weight 280KG 430KG 300KG 450KG



Sample Show of Welding Machine

High Speed Double Path Laser Welding Machine For Stainless Steel CE Approved 0High Speed Double Path Laser Welding Machine For Stainless Steel CE Approved 1


Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
