900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair

900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair
900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair 900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair 900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair

Large Image :  900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA
Model Number: PE-W600D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 2-3 Working Days
Payment Terms: T/T, L/C, PayPal, Western Union, MoneyGram, Escrow
Supply Ability: 9000 Unit per Month
Detailed Product Description
Product Name: PE-W600D Perfect Laser Suspension Arm Type Laser Welder For Mould Die Repair Model: PE-W600D
Certification: CE / ISO / FDA Origin: China
Warranty: 1 Year Cantilever Stretch Length: 900mm
Cantilever Up And Down Travel: 1000mm Cantilever XY Electric Stroke: 150*150mm
Laser Cavity Length: 600mm Positioning Mode: Red
High Light:

laser welding equipment

,

automatic laser welding machine

Laser Welding Machine Perfect Laser Suspension Arm Type Laser Welder for Mould Die Repair

(Model:PE-W600D)

Description



Perfect Laser specializes in the development, production, sales, training and after-sales of various types of laser equipment. In order to adapt to the welding of high-strength and high-hardness materials, the boom-type mold repair welding machine is made of cantilever type on the basis of the original spot welding machine; at the same time, in order to ensure the continuity of the solder joints. And uniformity, adding a two-dimensional workbench to place the mold for higher difficulty and more humanized processing.



Product Features



1. The introduction of German technology, the user-friendly design of whole machine, is more suitable for all kinds of large and medium mold repair.



2. This types of welding machine use of British imports of ceramic condenser cavity, with high reflectivity, corrosion resistance, high temperature, the service life is up to 8-10 years, xenon lamp life of 800 million times.



3. The welder use of the world's most advanced high-speed LCD light valve filter automatic protection system, eliminating the time in the work of the eye irritation.



4.This types of welding machine with a cross-cursor stereoscopic microscope, the welding position to enlarge 10 times, (optional 15 times, 20 times). Cross the center of the cursor and the laser spot center overlap, easy to locate.



5. The welder with high-power integrated chiller, to ensure that the whole machine for a long time high-power stable working conditions.



6. Parameter adjustment using intelligent handle remote control, simple operation.



7.12 directions can be adjusted controlled by computer, this types of welding machine is suitable for all kinds of mold repair welding.



Application



Suspension Arm Type Laser Welder for Mould Die Repair is suitable for large, medium and small molds of welding, aluminium welding. This types of welding machine is widely used in chassis, automobiles, tires, ships, large household appliances plastic shell, auto parts, bearings, construction machinery and other mold manufacturing and molding industry. This types of welding machine can repair welding a variety of mold steel, stainless steel, cymbals steel, precious metals and hard materials, aluminium welding. Precision injection molding, die-casting, mold repair and accessories, precision stamping parts of the welding, lost wax castings, aluminum castings, stainless steel products sand hole.



Specifications
 Model
 PE-W600D
 Input voltage  Three-phase four wire system,380V±5%
 Maximum input power  16KW
 All mirror  reflectivity≥99.7%
 Power feedback type  current feedback
 Condenser cavity  Gold single cavity design, double lamp single rod
 Laser wavelength  1.064μm
 Beam divergence angle  ≤8mrad/m
 Peak output power  500W
 Laser head adjustment  360 degree
 Pulse frequency  1~150Hz
 pulse width  0.1~20ms
 Current regulation  50-500A
 Beam expander  3 times
 Focal spot diameter  0.2-2mm
 Cantilever stretch length  900mm
 Cantilever up and down travel  1000mm
 Cantilever XY electric stroke  150*150mm
 Laser cavity length  600mm
 Table size  X*Y=500mm*350mm
 Table travel  200mm
 Table XY hand travel  250*120mm
 Display mode  Coaxial microscope+CCDobservation
 Positioning mode  Red

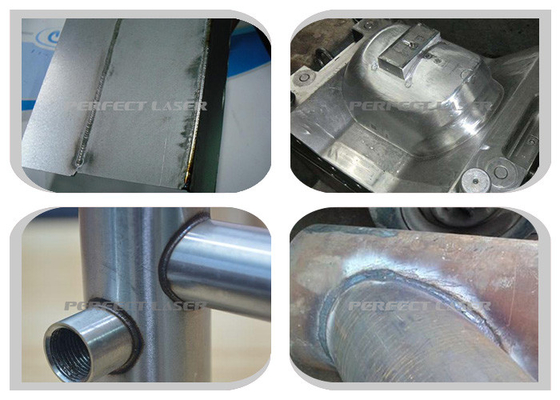

Sample Show

900 Mm Stretch Length Laser Welding Equipment  For Large / Medium Mold Repair 0



Packaging & Delivery


1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
