16KW Current Laser Welding Machine Arm Type Laser Welder Three Phase

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  16KW Current Laser Welding Machine Arm Type Laser Welder Three Phase

Product Details:
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA
Model Number: PE-W600D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 2-3 Working Days
Payment Terms: T/T, L/C, PayPal, Western Union, MoneyGram, Escrow
Supply Ability: 9000 Unit per Month
Detailed Product Description
Cantilever Up And Down Travel: 1000mm Focal Spot Diameter: 0.2-2mm
Power Feedback Type: Current Feedback Cantilever Stretch Length: 900mm
Laser Wavelength: 1.064μm Beam Divergence Angle: ≤8mrad/m
Laser Head Adjustment: 360 Degree Input Voltage: Three-phase Four Wire System,380V±5%
All Mirror: Reflectivity≥99.7% Table XY Hand Travel: 250*120mm
High Light:

laser welding machinery


automatic laser welding machine

16KW Current Laser Welding Machine Arm Type Laser Welder Three Phase



Suspension Arm Type Laser Welder for Mould Die Repair is suitable for large, medium and small molds of welding, aluminium welding. This types of welding machine is widely used in chassis, automobiles, tires, ships, large household appliances plastic shell, auto parts, bearings, construction machinery and other mold manufacturing and molding industry. This types of welding machine can repair welding a variety of mold steel, stainless steel, cymbals steel, precious metals and hard materials, aluminium welding. Precision injection molding, die-casting, mold repair and accessories, precision stamping parts of the welding, lost wax castings, aluminum castings, stainless steel products sand hole.


Product Features

1. For a variety of large and medium-sized mold repair.

2.This types of welding machine use of British imports of ceramic condenser cavity.

3. Adopt the world's most advanced high-speed liquid crystal light valve filter automatic protection system.

4.With a stereoscopic microscope with a cross-hair cursor, the welding position is enlarged 10 times (optionally with 15 times magnification, 20 times magnification).

5. High-power integrated chiller ensures long-term high-power stable working condition.

6. The use of intelligent control lever remote control parameter adjustment, the operation is simple and fast.

7.In 12 directions, the welding angle position can be adjusted freely, which is suitable for repair welding of various molds.



The pen laser engraving machine is widely used in exquisite patterns, trademarks and text pen marking industry, Applicable materials: gold and silver, stainless steel, iron, aluminum, copper, plastic products and other materials.




 Input voltage  Three-phase four wire system,380V±5%
 Maximum input power  16KW
 All mirror  reflectivity≥99.7%
 Power feedback type  current feedback
 Condenser cavity  Gold single cavity design, double lamp single rod
 Laser wavelength  1.064μm
 Beam divergence angle  ≤8mrad/m
 Peak output power  500W
 Laser head adjustment  360 degree
 Pulse frequency  1~150Hz
 Pulse width  0.1~20ms
 Current regulation  50-500A
 Beam expander  3 times
 Focal spot diameter  0.2-2mm
 Cantilever stretch length  900mm
 Cantilever up and down travel  1000mm
 Cantilever XY electric stroke  150*150mm
 Laser cavity length  600mm
 Table size  X*Y=500mm*350mm
 Table travel  200mm
 Table XY hand travel  250*120mm
 Display mode  Coaxial microscope+CCDobservation
 Positioning mode  Red

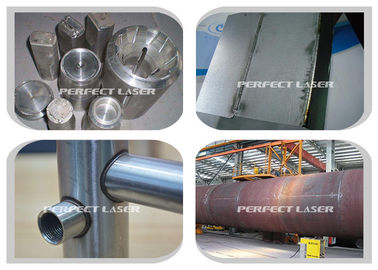

Sample Show

16KW Current Laser Welding Machine Arm Type Laser Welder Three Phase 0


Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
