(Model:PE-UV40)
►Product Introduction

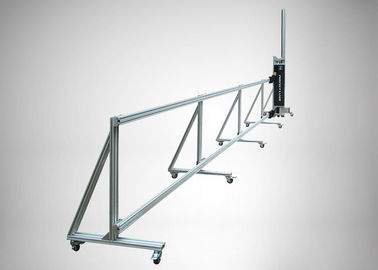

PE-UV40 wall UV printer has an exquisite and fashionable appearance, adopts the popular H-frame on the market, a siphon continuous ink supply system, dual-sensor automatic induction, micro piezoelectric inkjet technology and variable ink droplets, which makes the printing more vivid and realistic.
Optional dual print heads bring double printing speed. And the wall printer price continues to use the quick-drying and waterproof technology of the original model, which cures quickly and will not fade for a long time.
►Product Features
1. The wall painting machine body is small , which can save freight. The foldable rack is optional (extra charge) for easy carrying.
2. The UV light of the wall printer price can be used to quickly cure the prints to prevent the UV ink from penetrating into the material, so the color is more gorgeous than the water-based ink.
3. The UV light adopts air-cooled method,which is more convenient in use than water cooling wall UV printer.
4. This wall painting machine adopts the technologies of micro piezo inkjet , VSDT variable ink-drop and high fault-tolerant feathering, which makes the printing quality much higher.
5. The built-in UPS backup power supply of the wall printer price is optional (extra charge) ,which can work continuously when the power is cut off. Even if the printing is interrupted unexpectedly, the advanced automatic image replenishment system will continue the previous work, complete the printing, reduce the scrap rate.
6. The USA imported hyperbolic "Banner" sensor of the wall UV printer is used to sense up and down to avoid damage caused by the nozzle hitting the wall due to uneven wall surface.
7. The unique heating function,enables this wall painting machine to adapt to the cold weather in the north and work normally in the environment of 0℃-50℃.
►Application
1. Applicable materials
The wall printer price is widely suitable for interior and exterior walls, putty powder wall, latex paint wall, white wall, imitation porcelain wall, diatom mud wall, canvas, tiles, glass, rice paper, wall clothing, color coated glaze, shell powder, color paint and so on.
2. Applicable industries
The wall UV printer is widely used in home decoration, advertising industry, cultural and educational industry, government propaganda, hotel decoration, art experience museum, etc.
►Parameter Data
Machine Name | Direct to Wall UV Printer Machine |
Model | PE-UV40 |
Structure | Vertical |
Machine Body | Aluminum-magnesium alloy, Frame structure |
Actual Print Size(H×W) | 2000×4500mm (Standard) |
Width could be extended infinitely by adding guide rails | |
Control Method | Computer Operation |
Main-board Configuration | 4 core CPU, 8G DDR memory |
Data Interface | USB 3.0 |
Nozzle Model | Standard:EPSON piezoelectric nozzle × 1 (Double nozzles can be customized) |
Drop size | Minimum 3.5PL, |
maximum 12PL | |
Ink | Water-based / UV ink |
UV Light Cooling Method |
Air-cooled |
Ink Absorber | Improved Type(The Improved Type has good sealing performance, high cleaning efficiency and wastes less ink with strong adsorption capacity) |
Feeding System | Automatic feed, 340ml pigment library for special or various colors with sealing plug and dust cover |
Painted Resolution | 360×720dpi; 720×1080dpi; 720×1440dpi; 1080×1440dpi; 1440×2880dpi |
Machine Speed (m2/hour) | 10 (Sketch mode) |
8 (Production mode) | |
6 (Quality model) | |
4 (High-precision mode) | |
Image Type | PSD,CDR,JPG,JPEG,PNG,BMP,TIFF,EPS,AI,PDF,etc. |
Voltage | 220V |
Power Consumption | 20W (no load) ; 250W (maximum) |
Noise | Standby < 20dBA, drawing < 72dBA |
Working Environment | 0℃~50℃ without snow |
Storage | -21℃-60℃(-5°F-140°F) 10%-70% relative humidity with non-coagulated state |
System Platform | Windows XP / Win7 / Win8 / Win 9 / Win10 |
Machine Language | English, Chinese |
Certification | CE, GB 18582-2001, GBT 9756-2001 |
Packing Size (L×W×H) | 900mm×500mm×1500mm |
Packing Type | Compound wooden case comply with exporting standard. Deluxe Packing is optional.Portable roller case.Size according to your order |
Note: the above technical parameters are the design parameters.If there is any difference, it should be subjected to the actual effect of the equipment. |
►Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
►Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
