Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel

Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel

Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel
Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel
Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel
Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel
Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-worthy Packing
Delivery Time:
10-15 Working Days
Payment Terms:
L/C, T/T
Supply Ability:
5000 units per year
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE ISO
Model Number:
PE-F6040
Laser Type:
Fiber Laser
Laser Power:
200w/300w/500w
Laser Technology:
Germany Technology
Laser Source:
Germany Import Laser Fiber Laser Source
Max. Cutting Speed:
5-20meters/min(up To Materials)
Max. Location Speed:
60m/min
Laser Wavelength:
1070nm
Minimum Line Width:
≤0.1mm
Location Precision:
≤±0.05mm
Max. Moving Speed:
100m/min
High Light:
fiber laser cutting equipment , fiber laser cutter
Product Description

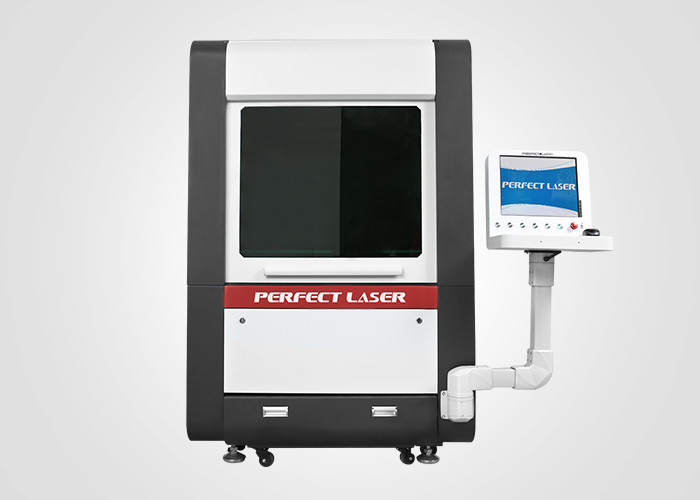

Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel
Model: PE-F6060 6040



►Product Description



Perfect Laser specializing in the production of various laser cutter and engraver. In order to meet the market processing needs of new and old customers, Perfect Laser recently developed a small scale cheap laser cutting machine: model PE-F 6040 6060.

Small Scale Fiber Laser Cutter is suitable for the small metal cutting, we have the 600*400mm and 600*600mm working area for customer. This kind of small laser metal cutting machine is not only save the space to customer, but also save the cost and the use ratio. The appearance of the fiber laser cutter is very small and easy to move. At the same time, the small laser metal cutting machine with the high precision and fast speed. No consumable, maintenance-free and has long life are the most advantages of the fiber laser cutter. All in all, this small laser metal cutting machine is the best choice for cutting small metal requirement customers.





►Product Features



1. Low operation cost: The power consumption of the metal sheet cutting machine is only 70-80% of Co2 laser.

2. High cutting speed: The speed of the metal sheet cutting machine is 2-3 times faster than YAG or Co2 laser.

3. High cutting accuracy: The finest laser beam of the fiber laser cutter is up to 0.01mm.

4. Low maintenance: This kind of fiber laser cutter is almost totally free of maintenance.

5.The small laser metal cutting machine is adopted advanced Germany technology, ensure the possess of high tech in the world.

6.With advanced optical system: To ensure good laser beam quality can strongly improve the laser power and laser beam quality.

7.With dynamic auto-focus system: To keep the same distance between the metal sheet and laser head. So that the fiber laser cutter realized the accuracy of cutting effect.

8.With pre-run function: To simulate the laser cutting path, Pre-run the cutting path in advance, ensure finding the precise cutting position for the fiber laser cutter.

9.With red light pointer: As the laser beam is in-visible, we adopt red light pointer to indicate the real position of the laser beam make cutting more accurate.

10.With high mirrors and lens cooling technology: All mirrors and lens is cooled by water. Takes the mirror heat during working. Prolong it’s lifetime. Save future operation cost.

11.With auto oil-filling system.





►Product Application



Applied materials: This kind of metal sheet cutting machine is widely applied in carbon steel cutting, mild steel, stainless steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials.

Applied Industry: This kind of metal sheet cutting machine is widely applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.





►Technical Data




Model PE-F4040 PE-F6040 PE-F6060
Laser type Fiber laser
Laser power 1000-3000W
Laser technique Germany technology
XY axis processing format 400*400mm 600*400mm 600*600mm
Laser source Germany imported fiber laser source
Running speed 10-35m/min
X/Y axis positioning accuracy ±0.03mm
X/Y axis repeated positioning accuracy ±0.02mm
Minimum cutting line width 0.05mm
Laser wavelength 1080nm±5
Modulation frequency 5000Hz
Fiber length 15m
Cooling method Double temperature and double control water cooler
Control system Perfect Laser optical fiber cutting control software
Positioning Red light
Overall power consumption ≤15KW
Service voltage 380V,50/60Hz
Maximum load of table 100KG
Transmission mode Double drive precision screw+linear guideway
Drive Mode Servo motor
Compatible File AUTOCAD/CORELDRAW/PLT/DXF/BMP/AI etc
Focusing Method Automatic focus
Control Mode Off-line motion control

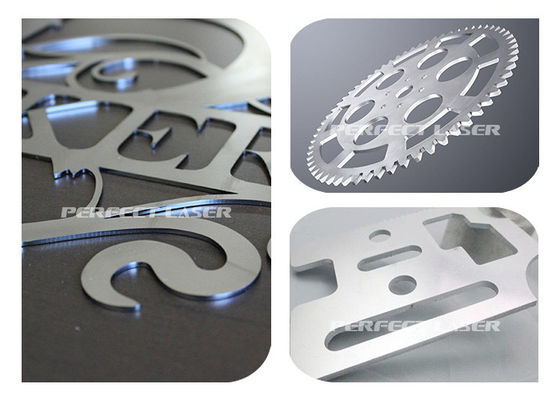

►Samples Show Of Fiber Laser Metal Cutting Machine



                          Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel 0



                        Small Scale Fiber Laser Metal Cutting Machine For Carbon Steel 1



►Packaging & Delivery Of Fiber Laser Metal Cutting Machine

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.





►Competitive Advantages Of Fiber Laser Metal Cutting Machine

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.

5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
