Product Details:
Payment & Shipping Terms:
|
| Certification: | CE / ISO / SGS / TUV | Software: | Professional Reader Laser Cutting Software |
|---|---|---|---|
| Origin Of Place: | China | Controlling System: | CNC Professional Control System |
| Interface: | USB Port Transfer | Machine Size: | 1970mm*1480mm*1250mm |
| Brand: | Perfect Laser | Model: | PEDK- 13090 |
| Packing: | Wooden Box | Payment: | T/T, L/C, PayPal, Western Union |
| Highlight: | co2 laser cutting system,co2 laser engraver |
||

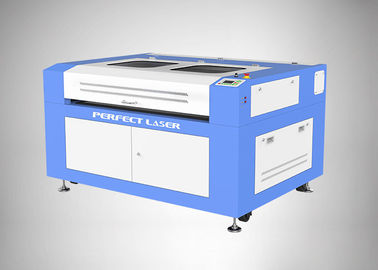

60W 80W 100W 130W 150W CO2 Laser Engraving Machine for Leather Paper Wood Cloth
(Model:PEDK-13090)
★ Product Introduction
Perfect Laser Co., Ltd. is a machinery manufacturing enterprise that produces and sells laser engraving and cutting machines. This PEDK-13090 CO2 laser engraving and cutting machine adopts sealed off CO2 laser tube to achieve high speed and high precision cutting. It has simple operation and stable performance. It can engrave a variety of non-metallic materials, its complete function, high quality product quality and humanity. The design concept and perfect use function are the first choice for middle and high-end customers.
★ Product Features
1.Perfect optical system, stable laser power and long life. Different laser powers can be selected according to different processing materials. The beam is fine and constant, the cutting depth is large, and the engraving precision is high.
2.Precision linear square guide rail ensures smooth running of laser head, high speed, no jitter, small incision, stable performance, fast marking speed.
3.The operation is convenient and simple, the design is more user-friendly, and the user is more likely to start; Support BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF and other file formats.
★ Application
Applicable industries: plexiglass, rubber plate making, bamboo products, electronics industry, industrial industry, craft gift industry, advertising industry, architectural model industry, clothing leather, packaging industry, toy furniture, etc.
Applicable materials: acrylic, plexiglass, wood, MDF, textile, fabric, fabric, leather and other non-metallic materials.
★ Specifications
|
Model |
PEDK-13090 |
|
Working Area |
1300x900mm (4 feet*3 feet) |
|
Laser Power |
60w / 80w / 100w / 130w / 150w |
|
Laser Type |
Hermetic and Detached Co2 Laser Tube |
|
Engraving Speed |
0-60000mm/s |
|
Cutting Speed |
0-10000mm/s |
|
Cutting Thickness |
0-25mm acrylic (Others Determined by Materials) |
|
Repeat Location Accuracy |
+/-0.0125mm |
|
Driving Mode |
DC0.8A 24V Stepper Motor |
|
Position System |
Red dot Laser Pointer |
|
Interface |
USB port transfer |
|
Voltage |
AC220v/50hz or 110v/60hz |
|
Machine Power |
900w |
|
Controlling System |
CNC Professional Control System |
|
Support Graphics Mode |
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
|
Cooling Mode |
CW-3000 Water Cooling (with Protection Function) |
|
Auxiliary Devices |
Exhaust Fan and Exhaust Pipe |
|
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
|
Power Control Mode |
Laser Energy Combining Movement Control System |
|
Software |
Professional Reader Laser Cutting Software |
|
Operating Temperature |
0-45C |
|
Operating Humidity |
5-95% |
|
Operation |
VCD Training, Engineer Overseas Available |
|
Machine Size |
1970mm*1480mm*1250mm |

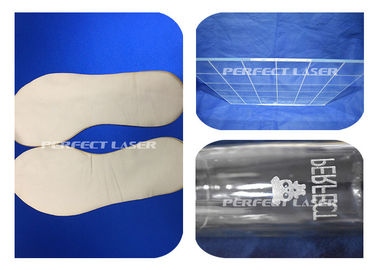

★ Sample Show
★ Packaging & Delivery
1. Sophisticated and professional logistic agent.
2. Well-trained and disciplined packing team.
3. Prompt deliver at the very day.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★ Competitive Advantages
1. 100% custom pass guaranteed.
2. Good after-sale service.
3. We offer high quality products at competitive price in quick delivery.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
