Product Details:
Payment & Shipping Terms:
|
| Product Name: | CO2 Laser Plastic Engraving Machine CW-3000 Water Chiller With Protection Function | Brand: | Perfect Laser |
|---|---|---|---|
| Machine Power: | 900w | Cooling Mode: | CW-3000 Water Chiller With Protection Function |
| Power Control Mode: | Laser Power And Moving System Cooperate | Controling System: | CNC Professional Controlling System |
| Repeating Location Accuracy: | ±0.0125mm | Working Voltage: | 220V ±10% 50HZ |
| Origin Of Place: | China | Certification: | CE ISO |
| Highlight: | co2 laser cutting system,co2 laser engraver |
||

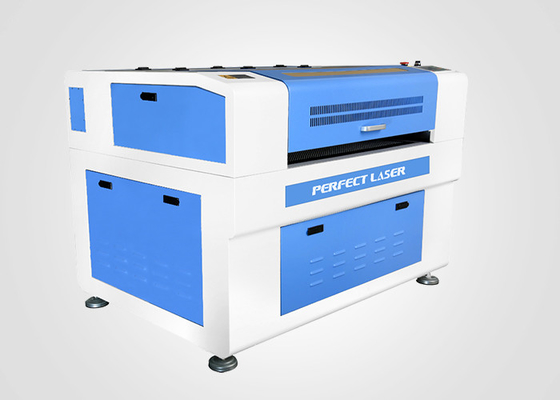

900*600mm CO2 Laser Plastic Laser Engraving Machine Water Chiller With CNC Controlling System
(Model:PEDK-9060)
★ Product Introduction:
The PEDK-9060 Co2 Non-metal Laser Engraving and Cutting Machine adopt the digital control system, high-precision metal guide rail and high-speed stepper motor, convenient and simple operation interface, strong humanization, can choose different laser power according to different processing materials, extremely high cutting precision, widely used in the non-metal material cutting industry.
★ Application:
Laser engraving cutting machine has been widely used for engraving & cutting on paper,wood, acrylic, leather,
PVC plastic, plexiglass, architectural models, rubber plates, bamboo products. For cutting and carving on plexiglass products, acrylic art & crafts panel, wood cutting & carving, advertising materials, easel, packing boxes, models, toys and furniture, etc.
★ Sample Show:
★ Technical Parameters:
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 60w / 80w / 100w / 130w |
| Engraving Area | 900×600mm |
| Engraving Speed | 0-60000mm/s |
| Cutting Speed | 0-10000mm/s |
| Repeating Location Accuracy | ±0.0125mm |
| Working Voltage | 220V ±10% 50HZ |
| Machine Power | 900w |
| Controling System | CNC professional controlling system |
| Supporting Graphics Formats | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
| Cooling Mode | CW-3000 Water Chiller with protection function |
| Auxiliary Devices | Exhaust fan & exhaust pipe |
| Cutting Platform | Professional Cellular platform / strip work table |
| Power Control Mode | Laser power and moving system cooperate |
| Control Software | Original Perfect Laser laser engraving and cutting software |
| Machine Size | 1400*960*1150mm |
★ Product Features:
1. Fast stepper motor and driver, random error, digital timing, analog quantum control of laser power, high repetition accuracy, perfectly engraved 1 x 1mm small English letters
2. Optional rolling and automatic feeding system can be used to automatically finish long workpiece such as cloth/cloth/leather/garment.
3. The machine is equipped with LCD touch screen and supports USB port and DSP offline control system, which is convenient and fast. USB communication can be conducted directly by inserting U disk
4. Imported high-precision linear guides and professional optical system of laser cutting and engraving machine are adopted to achieve high quality engraving and long service life of the machine
5. The water-cooling system is equipped with alarm protection, adopting the cw-3000 chiller with temperature display to avoid excessive combustion and protect the water circulation from power failure.
6. Equipped with luxury consumables, focusing lenses and reflectors imported from the United States, Reci laser tubes and radio-frequency metal tubes of the highest quality in China are available for your choice, with high efficiency and stability
7. Equipped with professional honeycomb or ribbon working table, which can meet various laser processing requirements
8. Imported ball screw, fast speed, high precision, smooth movement of laser head, high precision of laser beam reflection
9. The red light pointer can easily achieve accurate position without laser.
