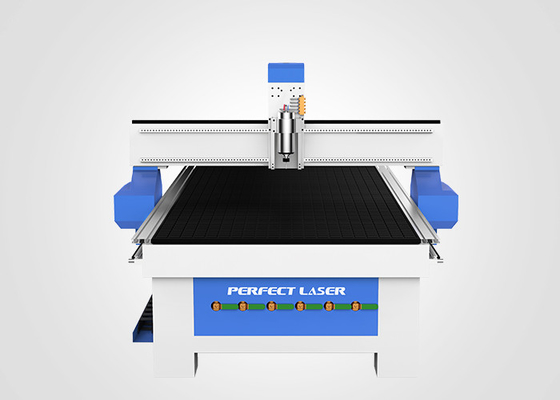

4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For Wood Acrylic PVC

4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For Wood Acrylic PVC

4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC
4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC
4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC
4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC
4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
10-15 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
3000 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / SGS / TUV
Model Number:
PE-1325
Spindle Power:
1.5kw / 2.2kw / 3kw /4.5KW
Maximum Feed Height:
80 Mm
Memory Buffer (Flash):
128 MB
Table Material:
Aluminium Alloy
Working Table:
Thicken Iron Casting Bed, Aluminum Alloy Work Table
Software:
Type3/Artcam/RD
Control System:
NC Studio/DSP
Certification:
CE / ISO / SGS / TUV
After-Sales Service Provided:
Engineers Service Overseas
Application:
Engraving Wood, Acrylic, Metal
Working Type:
CNC Control
Working Area:
1300mm*2500mm
High Light:
advertising cnc router , cnc router equipment
Product Description

4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For Wood Acrylic PVC

(Model:PE-1325)



Product Introduction



Advertising CNC Router Machine is designed with pure Aluminum, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the engine bed.

It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics.

It covers main sizes of marks and labels in the market.

It can cut through Plexiglass with thickness of 20mm one time without trouble and can be applied to large-scale relief, too.

There is no doubt that it is a perfect product in advertising.



4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 0

★ Product Features



1.X, Y, Z axis adopts imported ball bearing lead screw. It's accurate and fast. Even a 1mm letter can be clearly identified. The small power machine adopts the high power spindle, which is the batch production label, the construction model and the mold ideal product.

2.DSP64 contour control system and FPGA technology are adopted for high-speed calculation, which can run three axis continuously and smoothly at high speed. It has the ability to compute 5,000 vectors per second.

3.Data transmission is stable. Data transmission adopts ISA/IP DNC/IP direct connection correlation technology, which can associate the machine without interruption, with no limitation on the number of files.

4.Double nut guide screw, with high precision ball bearing guide screw imported from Germany, can automatically eliminate cracks. With the imported coupling, accurate control can be realized. It adopts linear guide rail (cylinder or square), which can ensure its working life.

5.The 32M large memory can store 30 processing files and open any process at the same time .

6.Connect to your computer through a USB port to allow data to be transmitted in less than one second, support hot plug and play, no need to install the driver (Windows XP)



4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 14,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 2


★ Application



It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics.




★ Specifications



Product Name CNC Router for Advertising
Model PEM-6090 PEM-1212 PEM-1215 PEM-1218 PEM-1325
Working Area 600*900mm 1200*1200mm 1200*1500mm 1200*1800mm 1300*2500mm
Perfect Laser also have the ability to custom-made according to user's special demand
Table Material Aluminium Alloy
Maximum Feed Height 80mm
X,Y,Z Guideway Rails Type Round Shape Guide Rail, Rod Transmission
Max Engraving Speed 4,000-7,000mm/min
Resolution Ratio 0.002mm
Repetition Accuracy ±0.02mm
Spindle Power 1.5KW (Optional 2.2kw, 3kw,4.5kw)
Spindle Rotating Speed 6000 - 24,000rpm
Spindle Cooling Water Cooling
Drive Motor System Step Motor and Step Driver
Interface PCI Port or USB Port
Memory Buffer (Flash) 128MB
Engraving Command G code, u00, mmg, PLT, HPG
Command Language System English Version, Windows 98/2000/XP Operation System
Operational Software Original Type3 Software, ArtCam Software or Wentai Software
Command Language System English Version, Windows 98/2000/XP Operation System
Software Compatibility Support CAD/CAM Software, PLT format, Corel Draw, Auto CAD
Working Temperature 0-45℃
Relative Humidity 30% - 75%





★ Optional Items


Rotary Fixture
DSP Remote Controller (for offline working)
Dust Collecting System for wood working
Vacuum Absorbing Table for wood working
Stainless Steel Water Slot for cutting metal (with Cooling System)
Servo Motor & Control System
Acrylic Polishing Machine
Automatic Knife Changing / Turn-plate Knife Changing System
Origin /Straight Knife Changing System

4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 34,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 44,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 5



★ Sample Show





4,000-7,000mm/min High Speed Advertising CNC Router Engraving Machine For  Wood Acrylic PVC 6




★ Packaging & Delivery


1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.





★ Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
