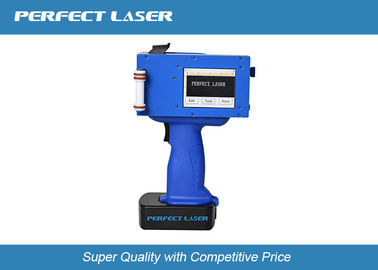

Portable Handheld High Resolution Speed Industrial Inkjet Printer for Inkjet Marking on Metal Plastic Wood Stone
1-7 Lines Printing Height Variable Sequence Number Barcode QR Code Small Hand Held Inkjet Printer With Battery Included
Payment & Shipping Terms:
|Product Name:||Mini Compact Portable Printer For 30 Kinds Printing Fonts Convenient Charging||Character Height:||1mm～12.7mm|
|Temperature:||1 ° C ~38 ° C||Humidity:||10%~80%|
|Type:||Inkjet Printer||Power Voltage:||DC16.8V|
|Printing Accuracy:||300DPI(High-definition)||Cartridge Capacity:||42 Ml, A Box Of Ink Jet Printing Of 400,000 Characters (2mm)|
|Certification:||CE / ISO / FDA SGS / TUV||After-sales Service Provided:||Engineers Service Overseas|
barcode inkjet printer,
inkjet coding machine
mini compact portable printer for 30 kinds printing fonts convenient charging
I. Product Introduction
1.Making durable and legible prints on a variety of types of surface, smooth, porous and also uneven surfaces of irregular shapes, such as pipes, barrels, bags, boxes, construction materials, elastic materials,
2.Non-contact marking (printing) technology, with only one drive roll requiring contact in order to synchronize printing,
3.Full freedom of printing offered by the portable, manual printer which is controlled in a non-contact way,
4.Project import and export via a USB port,
5.Wireless data transfer from a computer and from external devices,
II. Product Features
1.Integrated and hand-held design. Total volume is (l) 130mm* (w) 128mm* (h) 200mm and weigh1.2kg;
2. Many kinds of machine crust choices: aluminum alloy, steel printing ect.
3. 4.5 inch color touch screen, easy for online editing, what you see is what you get.
4.No ink waste: There is no need for extra thinner, and a box of ink can print 2000 multiple fonts.
5. Any printing direction: forward, up, down, 360-degree marking;
6. More than 30 kinds printing fonts: more than 30 kinds of high definition in Chinese and English fonts (including dot matrix fonts) and special fonts can be implanted by the manufacturer;
7. USB interface, available to computer transfer logo trademarks and so on;
8. Exquisite packaging, fashionable outer packing for easy carrying.

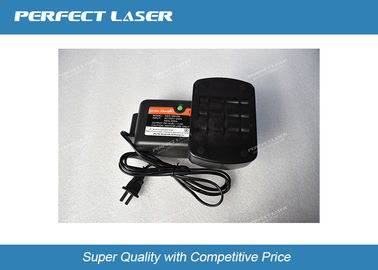

9. Battery and charger for use. Battery is installed at the bottom of the printer and it can be used as printer base. Equipped with the charger for convenient charging.
1, the ink-jet printing material: metal, plastic, wood, stone, light-gauge steel, pipe materials such as aluminum foil, cardboard boxes and building materials surface
2, the application of products: mainly used in product packaging printing code, date, batch number, and so on. Widely used in food, beverage, pharmaceutical, chemical, cement and other industries. Jet Printing in permeable surfaces (such as ordinary cardboard boxes, templates, textile, etc) and non-permeable surfaces (such as bags, tubes, smooth cardboard, etc).
III. Technical Data
|Print speed||Up to 45 metres per minute, and the print speed does not change due to increase of the number of printing lines|
|Printing material||Permeable and impermeable material|
|Printing graphics||logo, graphics can be imported through a USB stick|
|Print content||All English words, numbers, bar codes and graphics|
|Automatic printing||The date, time, batch number, frequency, and serial number (may vary according to time of day change)|
|Printing rows||Adjustable 1-7 line printing bar codes|
|Production serial number||1-8-variable sequence number|
|Store information||Systems can store more than 1000 huge amounts of information (external USB flash drive to save the information)|
|Message length||over more than 2000 fonts|
|Printing fonts||More than 30 kinds frontes|
|Ink||Quick-drying ink, ink, oil ink, invisible ink|
|Ink color||Black, red, blue, yellow, green|
|Cartridge capacity||42 ml, a box of ink jet printing of 400,000 characters (2mm)|
|Power time||3 hour charge, available for 8 hours (when the screen saver is enabled) standby time 24 hours|
|Battery capacity||2200 mA lithium-ion battery|
|Status display||LED light flashes that work LED lights fast shiny, printing work.|
|System power consumption||Average power consumption is lower than 5W|
|Application environmental||Temperature 1 ° c ~38 ° c ; humidity 10%~80%|
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Contact Person: Helen
Product Name: PM-600B industrial handheld inkjet printer
Print height: 2-13mm
Need to stick mark the height of the object: The height of 70mm - contact two drum 35mm height - only contact with the roller printing, for example, only seven nozzle. Cylindrical objects, such as printing, as well as to the catheter and barrels of spray
Spurt the code machine working position: Any location
