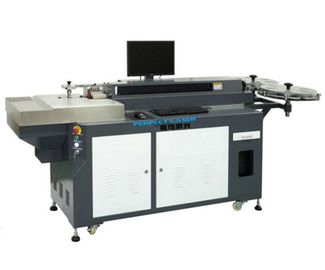

2016 Steel Rule Auto Bender Machine For Die Cutting Die Making Equipment
Description
Automatic processing steel rule cnc auto bender machine for die cutting die making
1.Panasonic servo motor system.
2.Bending steel ruler for wooden die plate production.
3.Taiwan Hiwin guide rail and Ball screw.
4.It can automatic cnc bending 1pt=0.45, 2pt=0.71, 3pt=1.05mm steel rule.
5.CE, BV Certification.
Product Features
1.Unique imported mold tool design,easy to bend,high precision of size,durable.
2.Panasonic servo motor & Taiwan Hiwin guide rail and Ball screw system, eradicate skidding and dislocated.
3.Multifunction: bending, bridge, front lipping, back lipping, cutting, flat cutting, it’s CNC processing steel rule auto bender machine for die cutting die making equipment.
4.Rely on the dxf, AutoCAD figures, can finish all kinds of complicated patterns.
5.Roller continuous feeding with servo digital work mode.(No need to feed with tool post repeated, high accuracy and speed)
6.Self- developed updated automatic bending control system with powerful function.
7.Full English & Chinese interface,easy to learn and easy to operate.
8. We take bend first and cut last, save the time and material for the user.
9.Apply to various kinds of mold processing, such as Paper boxes, Dolls, Cake Molds, Cartons, Flowers and Edition..etc.
Specifications
|
Model No. |
PEC-100 |
|
Blade thickness (mm) |
0.45, 0.53, 0.71, 1.05(mm) |
|
Blade height (mm) |
8 - 30mm |
|
Front Min. Bending size (mm) |
1.5mm |
|
Back Min. Bending size (mm) |
1.0mm |
|
Feeding precision (mm) |
±0.03mm |
|
Bending flatness (mm) |
±0.2mm |
|
Max. Bending angle |
100° |
|
Min. ARC radius of 90° degree |
0.4mm |
|
Functions |
Bending, cutting, bridging, lipping |
|
Cutting methods |
Swaying off or Auto flat cutting |
|
Optimal pattern format |
DXF |
|
Barometric supply |
0.6mpa |
|
Voltage supply |
380V 50/60HZ (standard) |
|
Total power |
1.3KW |
|
Over dimension of machine |
2700*1050*1350(mm) |
|
Packaging dimension |
1970*760*1370(mm) |
|
Total weight |
450KGS |
|
H.S. Code |
8462219000 |
|
Bending Blade thickness |
0.45mm |
|
Bending Blade height |
8-12mm |
Sample Show
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
