| Product Name: | PE-100J Laser Cleaning Machine | Laser Type: | Raycus Laser |
|---|---|---|---|
| Focus Length: | 254mm | Scanning Width: | 170 Mm |
| Output Fiber Cable Length: | 5 Meters | Average Output Power: | >100 Watts |
| Cooling Method: | Air Cooling | Max Power Consumption: | <450 Watts |
| Output Working Method: | Pulse / Continuous | Scanning Speed: | 10000 Mm/s |
| High Light: | rust remover machine,laser cleaning system |
||
PERFECT LASER 100w portables mall metal stainless steel iron aluminum mold steel gear copper alloy surface laser derusting machine
(Model: PE-100J)
★ Product Introduction:
Perfect Laser newly designed laser derusting machine combines light weight, convenient operation, high cleaning efficiency, non-contact and pollution-free. Fast and concentrated laser pulses, high-power impact, evaporate surface residues. Used for rust removal of cast iron, carbon steel, stainless steel, oil cleaning of mold gears, aluminum plate, stainless steel. The oxide surface of the paint is smooth and does not damage the base material.
★ Main Features:
1.The laser derusting machine can work offline and can be cleaned after power on.
2. Laser collimation output, output spot size can be customized (default 4mm spot).
3. The head laser derusting machine is extremely lightweight, weighs only 620g (without armor cable), and can be operated by hand for a long time.
4. Patented red light assisted focusing technology, can adjust the focus position according to different field lenses.
5. Portable trolley case design, the weight of the whole machine is 28kg, and it can be transported by high-speed rail or air consignment.
6. Super integrated injection molding chassis, cushioning design, stable structure, wear resistance, shock resistance and drop resistance.
8.no contact cleaning,no damage to workpiece.
★ Application:
1.Applicable Materials:

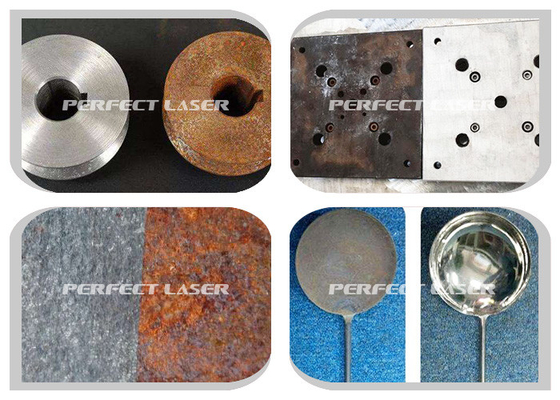

This laser derusting machine has a good cleaning effect on all kinds of metals, including: iron, carbon steel plate, stainless steel plate, steel rail, aluminum plate, die steel gear, steel pipe, copper alloy and many other materials.
It can be used to clean oxide layer, oil surface, stains, and dirt, to remove surface plating and coating.
2.Applicable Industries:
Machinery processing, mould cleaning, cultural relics restoration, electronic circuits, food processing and other industries.
★ Technical Parameters:
| Product Name |
100 Watts Portable Handheld Laser Derusting Machine |
| Model | PE-100J |
| Focus Length | 254mm |
| Scanning Width | 170 mm |
| Scanning Speed | 10000 mm/s |
| Output Working Method | Pulse / Continuous |
| Output Fiber Cable Length | 5 Meters |
| Average Output Power | >100 Watts |
| Cooling Method | Air Cooling |
| Voltage | 220 V |
| Max Power Consumption | <450 Watts |
| Whether Anti-high Reflection | Yes |
| Working Temperature Range | 0 - 40℃ |
| Storage Temperature Range | -10 - 60℃ |
| Laser Cleaning Machine Size | 617mm x 469mm x 291mm |
| Whole Machine Weight | 28 kgs |
| Laser Head Weight | 0.62 kgs |
★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
