Product Details:
Payment & Shipping Terms:
|
| Model: | PE-W300 | Max Laser Power: | 300W |
|---|---|---|---|
| Laser Wave-length: | 1064nm | Single Power Energy: | 90J |
| Welding Depth For Carbon Steel/ Stainless Steel / Galvanized Steel / Golden-Plate Steel: | 0.5-2mm | Welding Depth For Brass, Aluminum Alloy: | 0.1-1mm |
| Pulse Width: | 0.3-20ms | Welding Frequency: | 0.5-40HZ |
| Adjustable Facular Size: | 0.2-2mm | Power Consumed: | ≤9KW |
| High Light: | laser welding equipment,automatic laser welding machine |
||

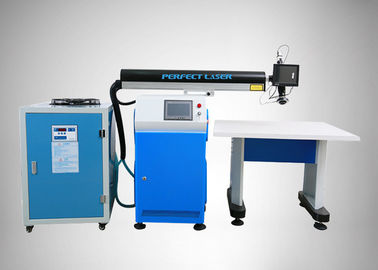

(Model:PE-W300)
★ Product Introduction
Crystal crafts stainless steel laser welding machine choose advertising word of Perfect Laser, the technology is exquisite, the famous Chinese and foreign.300W/400W/500W monochannel advertising laser welding machine using laser welding of metal type. This equipment adopts advanced technology at home and abroad, high-end configuration, good processing effect (solid welding, welding spot), suitable for stainless steel, galvanized plate, hot plate, copper, aluminum alloy and other metal materials.
★ Product Features
1. Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone of the stainless steel laser welding machine is small. The aluminum and stainless steel laser welding machine's work piece surface will not deformed.
3. For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 800mm.
4. There is no raised spot after welding. The aluminum and stainless steel laser welding machine doesn't need polishing process. Saving time and labor. The appearance is beautiful and tight.
5. The aluminum and stainless steel laser welding machine has optional CCD monitor. The welding effect is more clear and intuitive.
6. The specially designed aluminum and stainless steel letter laser welding machine's long focal distance lens F=200 mm to meet the demand for ultra-high font welding.
★ Application
The aluminum and stainless steel laser welding machine is used for making a variety ofaluminum and stainless steel letter welding, LED luminous characters, AD Logos, aluminumsigns and other fast welding.
The aluminum and stainless steel laser welding machine weld 0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum alloy (use 500w laser welder).
The aluminum and stainless steel laser welding machine can be called channel lettter laser welder, aluminum and stainless steel letter laser welding machine,stainless steel tape welding machine,stainless steel strip laser welder.
★ Technical Parameter
| Advertising Letter Laser Welding Machine | ||
| Model | PE-W300 | PE-W450 |
| Max laser power | 300W | 450W |
| Laser wave-length | 1064nm | |
| Single power energy | 90J | 90J |
| Welding Depth for Carbon Steel/ Stainless Steel / Galvanized Steel / Golden-Plate Steel | 0.5-2mm | 2mm |
| Welding Depth for Brass,Aluminum Alloy | 0.1-1mm | 2mm |
| Pulse width | 0.3-20ms | |
| Welding frequency | 0.5-40HZ | |
| Adjustable facular size | 0.2-2mm | |
| Power consumed | ≤9KW | |
| Laser Cavity | UK imported “Morgen” Brand | |
| Laser Lamp | Single lamp | Double lamp |
| Electrical source | 220V /1phase /50Hz/40A | 380V /3phase /60Hz/40A |
| Standard worktable | 800*1000mm | |
| Positioning | CCD Screen + Red Dot Pointer | |
| 2-linertary | 200mm | |
| Mobile level | 200mm | |
★ Sample Show
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★ Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
