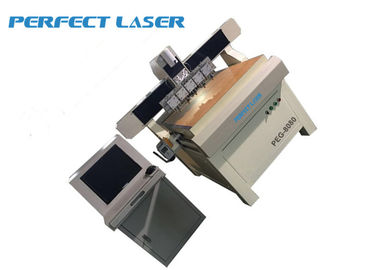

Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm

Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm

Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm
Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm
Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm
Minimum Order Quantity:
1 unit
Price:
negotialbe
Packaging Details:
suitable for sea or air transportation
Delivery Time:
7-15 Working Days
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
3000 units per month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PEG-8080
Effective Working Mesa:
800×780(mm)
Cut Glass Size:
800×780(mm)
Cutting Thickness:
0.15 — 6(mm)
Cutting Parallelism:
≤±0.10mm
Machine Size:
1230×1300×1300(mm)
Power Equipment:
1.25kw (fan 750W; X Axis Motor 200W, Y Axis Motor 200W, Z Axis Motor 100W)
Voltage:
380V(fan)/220V/(host)/50HZ
Cutting Diagonal:
≤±0.15mm
High Light:
1.25kw Co2 Tempered Glass Cutting Machine , Glass Co2 Laser Cutting Machine , Cast Iron Co2 Laser Cutting Machine
Product Description

Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm

(Model:PEG-8080)





Product features



1.Use combet mesa, high flatness, wear-resisting waterproof, with suction device, convenient on the piece and the lower, won't scratch glass;

2.Framework of cast iron, beams and support leg cast aluminum parts;

3.Import precision rack, guide rail, ball screw, ensure equipment precision and stability;

4.Automatic glass cutting machine adopts stepper or servo motors, drives and CNC control system, configuration import knife wheel, which can realize all kinds of photoelectric glass and ultra-thin glass straight line, and circular cutting. This machine adopts the man-machine interface, intelligent optimization cutting through CAD drawing;

5.In addition to the numerical control system with manual, automatic step by step, and back to mechanical origin function, also has the simulation, dynamic display tracking, Z axis automatic knife, breakpoint memory (execution jump section) and the rotating shaft processing and other special function.



Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm 0

Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm 1

Automatic 1.25kw Cast Iron Glass Co2 Laser Cutting Machine 1230×1300×1300mm 2





Parameters and performance



Effective working mesa 800×780(mm)
Cut glass size 800×780(mm)
Cutting thickness 0.15 — 6(mm)
Cutting parallelism ≤±0.10mm
Cutting diagonal ≤±0.15mm
Cutting Speed

0 — 18m/min(adjustable)

Servo motor: 45 - 0 m / min

Machine Size 1230×1300×1300(mm)
Power equipment 1.25kw (fan 750W; X axis motor 200W, Y axis motor 200W, Z axis motor 100W)
Voltage 380V(fan)/220V/(host)/50HZ





Key Part



Stepping motor and driving Optional Japan Yaskawa servo motor
Guide rail and ball screw Taiwan TBI
Original electrical equipment The Great Wall or CHINT products
Sheet metal casing Tin and spray paint
aerator China
Cutter wheel German Bole




Packaging & Delivery


1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
