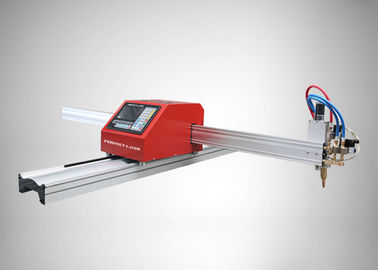

(Model:PE-CUT-C1)
PE-CUT-C1 & PE-CUT-C2 are also cantilever structure. The lateral cutting width is 1200-1400 mm, the longitudinal cutting length is 1500-2000 mm, this model is the most economic and lightest in weight in all of CNC cutting or plasma cutting machine, it has auto-fire and auto-adjusting height switch. It can move entirely, and the usage way is “sports car”, it can be placed on armor plate that is to be give stuff, and it is also very convenient.
| Cutting shape | Programmable cutting of straight and arcs of any flat shape steel plate parts |
| Cutting precision | national standard JB / T10045.3-99 |
| Installation | combination of installation, can be free to move, do not occupy a fixed site |
| Cutting width | transverse span 1900mm, effective cutting width 1500mm |
| Track length | orbit length of 2800mm, effective cutting length of 2500mm |
| Torch configuration | cutting torch system 1 set, according to customer needs assembly flame, plasma dual |
| Cutting thickness | 4-120mm, more than this thickness to be customized |
| Ignition and increase | automatic ignition, electric increase |
| NC System | Embedded CNC Cutting Control System |
| NC programming | Design of Automatic Graphic Programming Software Based on AutoCAD for NC Programming |
| File transfer | with USB interface |
| Cut gas | oxygen + acetylene or propane |
| Speed range | 0 --- 3500mm / min (mm / min) |
| Cutting shape | Programmable cutting of straight and arcs of any flat shape steel plate parts |
| Cutting precision | national standard JB / T10045.3-99 |
| Installation | combination of installation, can be free to move, do not occupy a fixed site |
| Cutting width | transverse span 1900mm, effective cutting width 1500mm |
| Track length | orbit length of 2800mm, effective cutting length of 2500mm |
| Torch configuration | cutting torch system 1 set, according to customer needs assembly flame, plasma dual |
1) Running parts are all adopted the seamless gear, rack drive and stepper motor.
2) Vertical linear guide rails imported from Taiwan, high precision, stable.
3) Bottom floor adopts high-quality flat steel square tube, and after processing, it has the characters of high-precision, rust resistant, beautiful and clean.
4) Beams using special aluminum industrial profile, light weight, no deformation;
5) Control system using self-developed control system, with currently the most excellent stability and superior noise immunity. English interface, simple operation, finished with dedicated graphics conversion software, CAD drawings can be directly converted into cutting code. With U-disk interface, graphic design by the Office of the U disk into the cutting machine. Simple graphics can be entered directly in the field cutting machine.
6) Linear guide rail beams to the optical axis, reducing wear and tear on the beam, to better ensure the cutting precision.
CNC plasma cutting machine is automatic and high efficiency cutting equipment. It is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting etc.
