Automatic Plasma Cutting Machine Cantilever Structure 600A , 800A , 1000A

Automatic Plasma Cutting Machine Cantilever Structure 600A , 800A , 1000A

Automatic Plasma Cutting Machine Cantilever Structure 600A , 800A , 1000A
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
7-15 days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Model Number:
PE-CUT-B2
Certification:
CE / ISO / FDA SGS / TUV
Product Name:
Plasma Cutting Machine
Application:
Metal Cutting
Driving System:
Three-Phase AC Motor Single-Driving
Working Material:
Iron, Steel, Aluminum Sheets, Galvanized Sheets, Titanium Plates
Cutting Speed:
0-3500mm/min
Working Area:
2800mm*3000m/ 2000mm*3000m/ 1200mm*2000m/ 1400mm*1500mm
After-sales Service Provided:
Engineers Service Overseas
High Light:
plasma cutting cnc machine , cnc plasma cutting machine
Product Description

160A , 200A , 400A , 600A , 800A , 1000A Plasma Cutting Machine PE-CUT-B2





Description

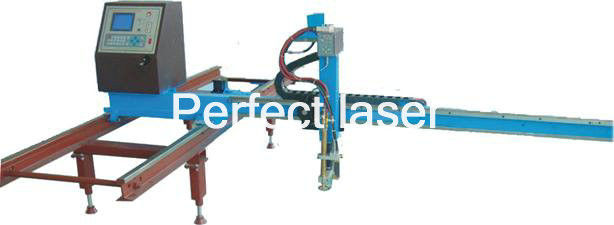

PE-CUT-B1 & PE-CUT-B2 are cantilever structure. The lateral cutting width is 2000-2800 mm, the longitudinal length is 3000 mm. Longitudinal tracks can be configured. It can set up several cutting torch; it can choose auto-adjusting height system. It is small and easy to move and flexible. So it is convenient.


Application

CNC plasma cutting machine is automatic and high efficiency cutting equipment. It is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting etc.



Specifications



Model

PE-CUT-B1

PE-CUT-B2

PE-CUT-C1

PE-CUT-C2

Working Area (mm)

2800 x 3000

2000 x 3000

1200 x2000

1400x1500

Effective Working Area (mm)

2800x2000

2000x2000

1200x2000

1400x1500

Auto-Inflame

1 set

NC Cutting

1 set

Controlled Switch

some

Lifting Height of Cutting

≤200mm

Cutting Speed

0-3500mm/min

Roughness of Cutting Surface

Ra≤12.5μm

Driving System

Three-Phase AC Motor Single-Driving



Optional Items

1) CNC Plasma power supply 60A/100A/160A/200A/400A/600A/800A/1000A
2) Other Optional devices



Item No.

Description

Extended Guide Rail

Single Toothed Rack,3M One Section

Extended Guide Rail

Double Toothed Rack,3M One Section

Increase Plasma Torch



Eclectic Button Height Controller

for Flame Cutting

Capacitive Height Controller and Auto-Ignition

for Flame Cutting

Arc Voltage Height Controller

 for Plasma Cutting

Beeline  Three-Cutting Torch

Special for Bevel

Poewe Spraying Lineation Device







Product Features

1) Running parts are all adopted the seamless gear, rack drive and stepper motor.
2) Vertical linear guide rails imported from Taiwan, high precision, stable.
3) Bottom floor adopts high-quality flat steel square tube, and after processing, it has the characters of high-precision, rust resistant, beautiful and clean.
4) Beams using special aluminum industrial profile, light weight, no deformation;
5) Control system using self-developed control system, with currently the most excellent stability and superior noise immunity. English interface, simple operation, finished with dedicated graphics conversion software, CAD drawings can be directly converted into cutting code. With U-disk interface, graphic design by the Office of the U disk into the cutting machine. Simple graphics can be entered directly in the field cutting machine.
6) Linear guide rail beams to the optical axis, reducing wear and tear on the beam, to better ensure the cutting precision



 Sample Show



Automatic Plasma Cutting Machine Cantilever Structure 600A , 800A , 1000A 0






Packaging & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
