DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range

DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range

DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range
DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range
DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing
Delivery Time:
15-20 working days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
500 sets per month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE ISO
Model Number:
PEDK-8080
Laser Modulation Frequency:
Cw
Marking Software:
3DLaser Marking Software (Chinese Version) Is Compatible With AutoCAD, Coreldraw And Other Image Format Files. Marking Of All Trhutype Fonts And Various Formats
Laser Center Wavelength:
10.6um
Power Supply:
10KVA
Galvanometer Scanning Repeatability:
0.01mm
Galvanometer Scanning Positioning Accuracy:
0.001mm
Marking Line Width:
0.1-0.5mm
Marking Range:
800mmx800mm(single)
Production Line Speed:
250mm/s
Galvanometer Scanning Speed:
10000mm/s
High Light:
co2 laser cutting system , co2 laser engraving cutting machine
Product Description

High Precision DIY Leather Laser Engraving Machine with 800mmx800mm marking range

(Model:PEDK-8080)



DIY Laser Engraving Machine Introduction



Perfect Laser is a professional manufacturer of laser engraving machinery. The PEDK-8080 diy laser engraving machine manufactured by the company adopts automatic positioning system, which reduces the waste of materials in the process of processing. It is very suitable for processing various leather fabrics, and carries out large-scale engraving, punching and hollowing processes. At the same time, the high degree of automation greatly saves time and improves work efficiency. The device can realize roll-to-roll whole-feed feeding, which greatly improves the speed and range of laser marking





DIY Laser Engraving Machine Features



1) The diy laser engraving machine has high power, fast marking speed and fine laser spot, high precision of engraving, hollow without burrs, can be processed in any shape;

2) The system performance is stable and can be used in industrial processing sites for continuous production;

3) The scanning width is large, and the roll-to-roll roll feeding greatly improves the laser marking speed and range.



DIY Laser Engraving Machine Application Range

The diy laser engraving machine can be widely used in clothing, packaging, craft gifts, home and other leather products industry.




DIY Laser Engraving Machine Technical Parameters



Model PEDK-8080
Product name Leather engraving machine
Laser CO2 Laser
Laser center wavelength 10.6um
Laser output power 180w
Laser modulation frequency cw
Anti-high-reaction components With special optical isolator and reflected light absorber to prevent laser reflection damage of gold, silver, copper and other materials
Beam quality 1.2<m2< span="" style="box-sizing: border-box;">
Galvanometer scanning speed 10000mm/s
Production line speed 250mm/s
Marking range 800mmx800mm(single)
Marking line width 0.1-0.5mm
Galvanometer scanning positioning accuracy 0.001mm
Galvanometer scanning repeatability 0.01mm
Power supply 10KVA
Cooling method Air-cooled, air-cooled, water-cooled
Power supply AC220V±2%,50Hz
Computer DELLINTEL2.0, Chinese WINDOWS operating system, 19-inch LCD monitor, memory 4G, hard drive 500G
Marking software

3DLaser marking software (Chinese version) is compatible with Auto CAD, Coreldraw and other image format files.

Marking of all trhutype fonts and various formats

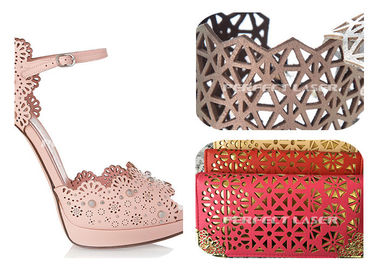

DIY Laser Engraving Machine Sample Show



DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range 0DIY Leather Laser Engraving Machine High Precision With 800x800mm Marking Range 1
