Air Cooling 30w Handheld Laser Laser Derusting Machine For Mold Industry
(Model:PE-X30)
Introduction of Laser Derusting Machine
Laser cleaning is a highly efficient, green technology which does not require any chemicals or cleaning fluids and causes minimal damage to the substrate. The laser derusting machine can be guided by optical fiber to clean the hard-to-reach parts, and has a wide application range. The laser derusting machine PE-X30 adopts the Raycus laser generator, which can be equipped with hand-held and automatic matching. The device comes with a variety of modes and can be freely selected for processing (line type, round type), which can flexibly meet customer needs. The laser derusting machine is a reliable cleaning product.
Features of Laser Derusting Machine
1. Non-contact cleaning: the laser derusting machine doesn’t damage the components.
2. Precise cleaning:the laser derusting machine can realize precise position and precise size cleaning.
3. No chemical cleaning solution: the laser derusting machine has no consumables and it is safe and environmentally friendly.
4. Simple operation: after power-on, the laser derusting machine can work. Hand-held or automatic cleaning are available.
5.High efficient cleaning: the laser derusting machine saves your time. The laser cleaning system is stable and virtually maintenance free.
Application Range of Laser Derusting Machine
The laser derusting machine PE-X30 is widely used in various industries, such as: aviation, shipbuilding, auto parts, rubber molds, high-end machine tools, ship molds, rails, environmental protection industries, etc. It can be used not only to clean organic contaminants but also to clean inorganics, including metal derusting, metal particles, dust, etc. It can do rust removal, paint stripping, degreasing, cultural remediation, degumming, decoating and deplating.
Specifications of Laser Derusting Machine
| Model | PE-X30 Laser Rust Cleaning Machine |
| Laser power | 30W |
| Laser type | Raycus laser |
| Laser wavelength | 1064nm |
| Cooling method | Air cooling |
| Cabinet dimension | 420*340*630 |
| Power | 300W |
| Scan width | 5-50 |
| Optional matching | Hand held / Automation |
| Working environment temperature | 5-40℃ |
| Length of light | 3 meters (optional 5 meters) |
| Power Supply | 220V-50/60Hz |
| Laser grade | 4 |
| Control system | Autonomous research and development control system |
| Operation interface | 0.96 inch OLED screen |
| Cleaning mode | Equipment comes with a variety of patterns, free choice processing (linear, round type) |

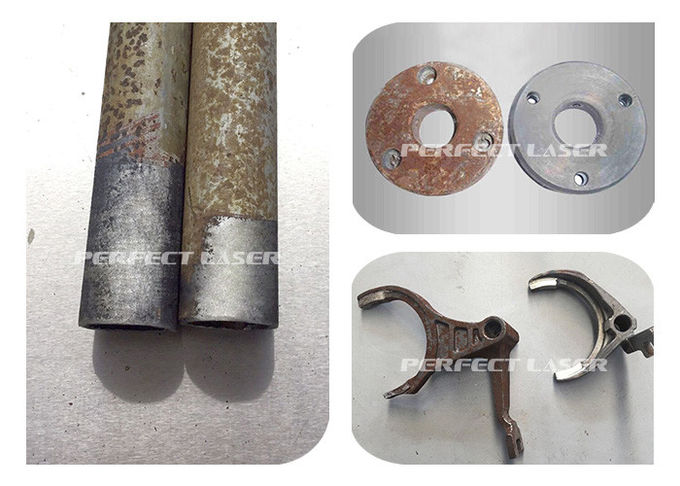

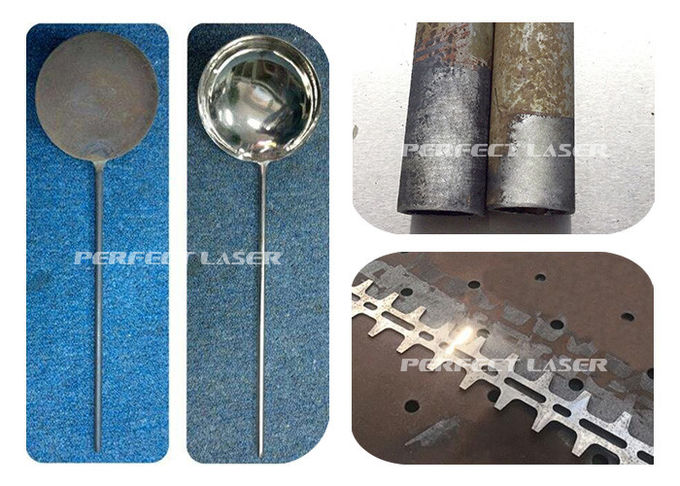

Sample Show of Laser Derusting Machine
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
Competitive Advantages
1. competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Flexible and Untraceable payment terms.
Laser cleaning machine PE-X30.pdf
