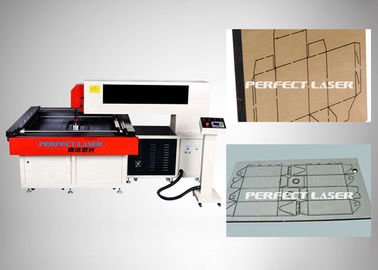

Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System

Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System

Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System
Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System
Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing
Delivery Time:
10-30 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
500 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Model Number:
PEC-0909
Certification:
CE / ISO / FDA
Brand:
Perfect Laser
Payment:
T/T, L/C, PayPal, Western Union
Laser Tube:
Chinese Top Quality Laser Tube
Cutting Speed:
10 -6000mm /min
Cutting Depth:
20-25mm MDF
Cutting Thickness:
25mm Die Board And MDF / Wood
Machine Power:
2.5KW
Cooling Mode:
Water Cooling And Protection System
After-sales Service Provided:
Engineers Service Overseas
High Light:
laser die cutting machine , wood die cutter
Product Description

900×900mm Paper Die Cutting Machine With Cnc Professional Control System


Introduction of Paper Die Cutting Machine

Flat Die Board Laser Cutting Machine PEC-0909 is suitable for cutting non-metallic materials. It is widely used in garment fabrics for hot drilling and cutting and handicraft engraving. The moving part adopts high-precision linear guide rail and high-speed Japan Panasonic Servo Motor and Driver; it has professional control system, humanized operation interface. The cutting speed is controlled freely and the cutting precision is high. It is a good choice for the laser cutting industry and laser processing center of non-metallic materials.





Application of Paper Die Cutting Machine

Applicable materials:

PEC-0909 is suitable for fabrics, leather, PU, wood, paper, acrylic and other materials.

Applicable industry:

PEC-0909 is suitable for garment embroidery, leather products, bamboo and wood products, models, handicrafts, advertising, packaging and printing, paper products and other industries.







Features of Paper Die Cutting Machine

1. Cutting accurately, no focal edges, no yellow edges.
2. The professional control system is convenient, saves space and is easy to operate.
3. Perfect optical system, stable laser power and long life.
4. Japan Panasonic Servo Motor and Driver and Taiwan linear guide transmission system ensures fast cutting and high precision.
5. Equipped with two high-power heads, the two heads can work at the same time. The efficiency is doubled. The heads can be turned on separately.







Specification of Paper Die Cutting Machine



Model

PEC-0806

PEC-1208

     PEC-1512

Working area

800× 600mm

1200× 800mm

1500× 1200mm

Laser tube

Chinese Top Quality Laser Tube

Laser power

150W× 2

Tube Lifetime

1500-3000 hours

Maintenance

Change laser tube every 3-6 months

Cutting Mode

Two laser head coaxial cutting

Cutting Speed

10 -6000mm /min

Max Cutting Depth

25mm

Cutting Width

0.35mm -0.75mm adjustable, > 0.75mm adjustable

Driving system

Japan Panasonic Servo Motor and Driver

Transmission System

Germany Ball Screw Rod & Taiwan Linear Guide Rail

Machine Power

2.5KW

Working voltage

220V(±10%) 50-60Hz

Cooling Mode

Water cooling and protection system

Support Format

HPGL,PLT,AI,DXF etc.

Compatible software

CorelDraw, AutoCAD, Photoshop

Controlling Mode

CNC Professional Control System



Sample Show of
Paper Die Cutting Machine


Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System 0Paper Laser Die Cutting Machine 900×900mm With Cnc Professional Control System 1


Packaging & Delivery
of Paper Die Cutting Machine
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages of Paper Die Cutting Machine
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
