|Product Name:||Fiber Laser Cutting Machine 500W / 800W / 1000W / 2000W Metal Sheet And Pipe Fiber Laser Cutting Machine||Warranty:||1 Year|
|Cooling System:||Water Cooling||Origin:||China|
|Certification:||CE / ISO / FDA SGS / TUV||After-Sales Service Provided:||Engineers Service Overseas|
fiber laser cutting equipment,
laser metal cutting machine for sal

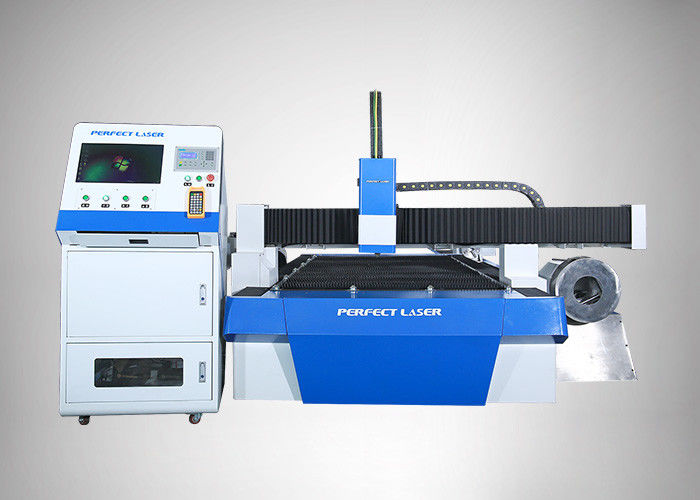

Product Introduction of Fiber Laser Cutting Machine
Wuhan Perfect Laser, a professional manufacturer of optical fiber cutting machines, with advanced equipment, first-class technology and high quality service. In order to meet the cutting needs of our customers for sheet metal materials, Perfect Laser has recently introduced a fiber-optic tube-and-tube cutting machine that uses Taiwan imported lead screw guides, Panasonic servos and drives, which can simultaneously cut sheet metal and pipe, and cut the diameter of the pipe. Up to 200mm (can also be customized according to customer needs), production efficiency is greatly improved. In addition, the machine adds a uniquely designed rotary aid to solve the technical problems of different bending and cutting of the pipe, saving you effort and effort.
Product Features of Fiber Laser Cutting Machine
1. Touch screen console operating system:
Fiber laser device controller installed on a computer (English version of Windows XP system)
Baichu system, automatic calculation and optimization of cutting path, industrial computer installation optimization software
The touch screen console controls the laser head (adjusting the distance between the laser head and the metal piece); the remote control handle controls the movement of the laser cutting head.
2. Adopt lasermach (American laser microphone) and PRECITEC (German Pres) autofocus laser cutting head (metal sensor): the laser cutting head nozzle contacts the surface of the metal sheet, the cutting head automatically moves up and down, high sensitivity and high stability. There is no obvious spark phenomenon, which avoids the change of air medium and the fault caused by electromagnetic field interference, and avoids collision damage of the cutting head.
3.3HP high-power chiller refrigeration: the water-cooling method is used to keep the laser head working at constant temperature (plus or minus 5 degrees), which ensures the stability and speed of the laser during operation.
4. Ruike 1000W (IPG1000W) fiber laser generator: high photoelectric conversion rate, high beam quality, working life of more than 100,000 hours, no maintenance costs.
5. Universal ball and jagged working platform, load metal material for fast and stable loading, sawtooth platform bead cutting metal sheet, reduce spark splash during laser cutting.
5. Japan Panasonic servo motor and driver: improved cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed of 90 m / min, the maximum effective cutting range of 1500 * 3000mm. The servo system has excellent dynamic response acceleration characteristics to ensure smooth and reliable machine operation and maintenance-free;
7. Self-service refueling, alarm reminder, smoke exhaust device: the laser cutting machine track can be automatically refueled, and the lubrication of the track is guaranteed at all times. The alarm device of the laser cutting machine can remind the working condition of the machine. The smoke evacuation device extracts the smoke generated during the cutting process and protects the working environment.
8. Rotary aid: The unique design solves the technical problem of cutting the bent part of the pipe.
Specifications of Fiber Laser Cutting Machine
Metal sheet and pipe
|Maximum run speed||90m/min|
|Laser Wavelength||1080 nm|
|Minimum cutting line width||0.1mm|
|Rated output power||50--2000W|
|X, Y-axis positioning accuracy||≤±0.01mm|
|Repeated positioning accuracy of the table||≤±0.01mm|
|The maximum load of the workbench||800KG|
|Effective processing format||1500*3000mm|
|Electricity power||380v 50Hz±10%|
|Red light spot position||yes|
|Auxiliary gas||Oxygen, nitrogen|
|Pipe type||Round,oval,special-shaped pipe|
Application of Fiber Laser Cutting Machine
The equipment can effectively cut a variety of style pipes such as round pipe, square pipe, rectangular pipe, elliptical pipe, parallel elliptical pipe and D-shaped pipe.
Main processing materials: stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals, etc.
Use industry: sheet metal industry, kitchen industry, elevator mobile phone industry, advertising industry, chassis cabinet industry, mechanical parts processing industry, precision processing industry, automobile manufacturing industry, daily light industry, agricultural machinery and food machinery industry, hardware sanitary ware industry, Medical fitness equipment industry, etc.
Sample Show of Fiber Laser Cutting Machine
Packaging & Delivery of Fiber Laser Cutting Machine
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages of Fiber Laser Cutting Machine
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
