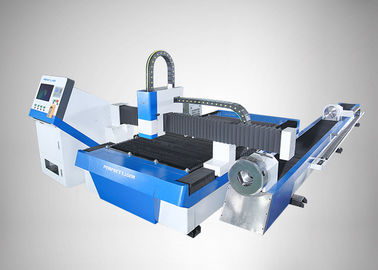

Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems

Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems
Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems

Large Image :  Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems

Product Details:

Place of Origin: China
Brand Name: Perfect Laser
Certification: CE / ISO / FDA
Model Number: PE-F3015B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 2-4 Weeks
Payment Terms: T/T, L/C,Paypal, Western Union
Supply Ability: 300 Units Per Month
Detailed Product Description
Product Name: Fiber Laser Cutting Machine For Round Metal Pipe And Sheet Cutting Color: Blue
Laser Wavelength: 1080 Nm Minimum Cutting Line Width: 0.1mm
Maximum Run Speed: 90m/min Rated Output Power: 50--2000W
X, Y-axis Positioning Accuracy: ≤±0.01mm Repeated Positioning Accuracy Of The Table: ≤±0.01mm
The Maximum Load Of The Workbench: 800KG Effective Processing Format: 1500*3000mm
Keyword: Fiber Laser Cutting Machine
High Light:

fiber laser cutting equipment

,

laser metal cutting machine for sal


Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems 0

Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems


Product Introduction


Perfect Laser, professional fiber laser cutting machine manufacturers, with advanced cutting machine equipment, first-class technology, quality service, get good reputation in fiber lasercutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, Perfect Laser launched the muti-functional Metal Pipe and Sheet Fiber Laser Cutting Machine(Model:PE-F3015B). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of cutting machine can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.


Technical Data

Name Metal sheet and pipe fiber laser cutting machine
Model PE-F3015B 500W(800W1000W2000W)
Maximum run speed 90m/min
Laser Wavelength 1080 nm
Minimum cutting line width 0.1mm
Rated output power 50--2000W
X, Y-axis positioning accuracy ≤±0.01mm
Repeated positioning accuracy of the table ≤±0.01mm
The maximum load of the workbench 800KG
Effective processing format 1500*3000mm
Z-axis travel 120mm
Volume 4.6*2.3*1.8m
Power 12KW
Water cooler 2kw
Electricity power 380v 50Hz±10%
Red light spot position yes
Auxiliary gas Oxygen, nitrogen
Pipe type Round,oval,special-shaped pipe
Pipe Length 3-9m
Diameter 1mm-300mm




Product Advantages
1. High-quality materials: The US imported auto-focus laser cutting head. When the machine is working, the cutting head moves up and down automatically, with very high stability and sensitivity. There is no noticeable spark generation that can avoid damage caused by the head crash.
2. The cooling mode of water cooling can make the laser head work at a constant temperature, which ensures the high efficiency and stability of laser operation.
3. With a high-quality fiber laser generator, the beam quality is higher, the photoelectric conversion rate is high, and the working life is longer.
4. Installed automatic refueling and automatic alarm reminder. It can be automatically refueled on the laser track to ensure that the track is always lubricated; the alarm reminder can monitor the working status of the machine at any time, and it will automatically alarm if there is an abnormal sound.
5. Configurable Rotary Aid: Solved the technical problem that has been plaguing people for a long time to cut the curved part of the pipe
6. The smoke exhaust device is installed: The smoke generated during the cutting process can be extracted at any time to protect the working environment.


Product Details
1.3HP high-power water chillers to keep the laser head always in a comfortable working temperature. The temperature of the water can be maintained at plus or minus 5 degrees. The constant temperature of the water can stabilize the laser power, make work more stable and fast.

2. Automatic focus laser cutting head (metal sensor) selection of well-known brands lasermach (US laser microphone) and PRECITEC (Germany Prest), with high sensitivity, good stability. Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, stable operation, good reliability, no obvious spark phenomenon. Avoid the changes in air media and electromagnetic interference caused by the failure, and avoid cutting head collision damage.


Samples
Round Metal Pipe Sheet Metal Laser Cutting Machine Laser Cutting Systems 1

Packaging & Delivery



1. Prompt deliver at the very day.


2. Well-trained and disciplined packing team.


3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


4. Sophisticated and professional logistic agent.



Competitive Advantages

1. 100% custom pass guaranteed.


2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


3. Flexible and Untraceable payment terms.


4. Good after-sale service.


5. We offer high quality products at competitive price in quick delivery.
01-1 Pipe and sheet fiber Laser cutting machine PE...
