CNC 2000 control system Multi-Function Laser Welding Machine for Aviation
Product Introduction

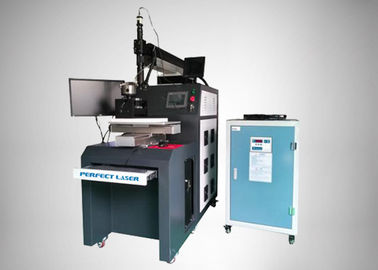

CNC 2000 control system Multi-Function Laser Welding Machine for Aviation
Perfect Laser is a leading brand for professional laser welding machine . In order to satisfy the different needs of the market for laser welding, Perfect Laser developed a type of Multi - function laser welding machine.
With the help of CNC 2000 control system, this welding machine can automatically generate the movement trajectory according to the specific shape of the workpiece to control all functions and make best welding effect.
Product Features
1.High conversion efficiency, high energy stability, good beam mode.the overall performance of the device has significantly improved, which enhanced the operation of the equipment ductility. Wide range of applications, and easy to operate.
2.Integrated designs, beautiful and gorgeous appearance, compact and reasonable structure.
using Germany's advanced combined gold-plated reflective laser cavity technology, high output power, excellent beam mode.
3.Double pulse xenon lamp, constant current switching power supply, programmable pulse and intelligent system management, and it has a misuse and over-temperature water flow automatic protection.
4.Three-axis table system and light guide system by the IPC or CNC control, so it can achieve three or four-axis movement.
5.Optional closed chamber or airtight room, manual table lifting mechanism, automatic rotation mechanism and coaxial monitoring system and other institutions.
6.The width of the weld is small, the heat affected area is small, Also the deformation is small, and the welding speed is fast and so on.
7.Welding groove is smooth and beautiful, no need to deal with anything after welding, highwelding quality, no pores, this can reduce or optimize the base metal impurities, welding can be refined after welding.
8.It can achieve precise automatic control, little laser output power changes, and focus spot is small, high precision positioning.
9.It comes with a rotating fixture, and can weld the round tube and other special parts.
10.Automatically welding or manual welding can be selected to rapidly weld all kinds of components.
Application
Application Field: aviation, machinery, electronics, communications, power, chemical, automobile manufacturing, institutions and research institutes and other industries. Such as auto parts welding, lithium-ion battery sealing welding, electronic components such as precision spot welding.
Specifications
|
No. |
Project |
Tender specifications |
|
Model |
PE-W500D 300D 400D |
|
|
1 |
Input voltage |
Three-phase four-wire system, 380V ± 5% |
|
2 |
Maximum output power |
12KW |
|
3 |
Full mirror |
Reflectivity≥99.7% |
|
4 |
Power supply feedback type |
Current feedback |
|
5 |
Condenser chamber |
Gold-plated single-chamber design, dual-lamp single rod |
|
6 |
Laser wavelength |
1.064μm |
|
7 |
Beam divergence angle |
≤8mrad/m |
|
8 |
Peak output power |
500W |
|
9 |
Laser head adjustment |
360 degrees |
|
10 |
Pulse frequency |
1~150Hz |
|
11 |
Pulse Width |
0.1~20ms |
|
12 |
Current regulation |
50-500A |
|
13 |
Beam expander |
3 times |
|
14 |
Focus spot diameter |
0.2-2mm |
|
15 |
X-axis and Y-axis travel |
X*Y=300mm*300mm |
|
16 |
Table size |
X*Y=400mm*400mm |
|
17 |
Moving speed range |
0-50mm/s |
|
18 |
Reset accuracy |
0.03mm |
|
19 |
positioning accuracy |
≤0.025mm |
|
19 |
Z axis |
Electric lift height 200mm Manual lift 100mm |
|
20 |
Rotating fixture |
Diameter Ф100mm rotating fixture, angle 0-90º manually adjustable, can be locked in any position between them, using stepper motor drive, step equivalent of 0.01 degrees, positioning accuracy of 0.1 degrees, repeat positioning accuracy of 0.05 degrees. |
|
21 |
Displaying method |
Coaxial CCD LCD screen observation |
|
22 |
Targeting method |
Positioning method red + positioning rod |
|
23 |
way of light |
Automatic + manual switchable |
|
24 |
Cooling system |
Double cycle system, heat exchange titanium tube, over temperature alarm, flow protection, water level protection. |
|
25 |
Control System |
Industrial computer CNC2000 control software |
