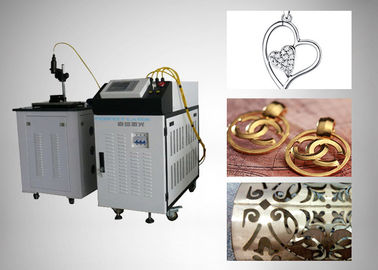

CNC platform / Semiconductor Red Light Positioning Laser Welding Equipment

CNC platform / Semiconductor Red Light Positioning Laser Welding Equipment

CNC platform / Semiconductor Red Light Positioning Laser Welding Equipment
CNC platform / Semiconductor Red Light Positioning Laser Welding Equipment
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
3-6 Weeks
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
500 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PE-W300G
Equipment Size:
Main Engine 1020*650*1100mm Water Machine 750*600*920mm
Power Consumption Of The Whole Machine:
≤9KW
Fiber Length:
5 Meters (standard)
Laser Cooling Water-cooling Observation System:
Water-cooling
Laser Output Focal Length:
150mm
Pulse Frequency:
≤50Hz
Laser Power:
300W
Pulse Width:
≤15ms
High Light:
laser welding equipment , laser welding machinery
Product Description

CNC platform/ Semiconductor Red Light Positioning Laser Welding Machine

Product Introduction

PE-W300G optical fiber transmission 300W laser welding machine developed by Perfect Laser independently.The equipment adopts integrated design with compact structure and beautiful appearance. It has the advantages of good beam pattern, stable performance, reliable use, fast welding speed, wide welding range, long service life of consumables and consumable parts. At the same time fully consider the equipment in batch production of various parameters, from the details to achieve key parameters adjustable data display closed loop. Both from the shape, structure, or man-machine operation page, reflects Perfect Laser based on human nature and work timeliness of innovation and progress, in fact, laser welding machine industry is a best-selling product.



Product Features

1. Using advanced German combined gold plated reflective cavity laser technology, and using special beam selection mode and forming technology, high output power and excellent laser beam mode are guaranteed.

2. PE-W300G type laser welding machine has the characteristics of high output power, high energy, excellent laser beam mode, reliable performance, optical fiber transmission, etc. It can be flexibly handled at different positions at the same time.

3. Equipped with programmable pulse and intelligent management system, double pulse xenon lamp and constant current laser power supply, stable operation of the protection system, and prevent the water temperature too high or too low.

4. Using semiconductor red light positioning, easy to find the welding point, to ensure more accurate processing, save time and effort.

5. Configuration CCD Coaxial / paraxial monitoring, more intuitive monitoring welding process, more convenient and timely adjustment.

6. The anti shock working platform and the rotary fixture are convenient to place the objects to be welded, and can also be designed according to the requirements of the customers, so as to meet various processing requirements.

7. The boom system of the boom type laser welding machine can move up and down, move forward and backward, and is equipped with a two-dimensional numerical control platform, which can repair welding radius of 1.5 meters, weight of several tons of large mold, and the equipment is equipped with pulleys, easy to move. It can repair welding, of course, also suitable for medium and small mold repair.



Application

PE-W300G laser welding machine is widely used in high precision metal parts welding, soldering electronic components, kinescope electron gun welding, missile detector welding, welding, vibration motor of mobile phone, car lights and detonator engine welding xenon lights welding, welding parts, high precision photoelectric sensor and electronic products welding etc.



Model Parameters

Type PE-W300G
Conduction type Optical fiber transmission (lamp pumped)
Machine power supply 380V±10%/50Hz
Laser type Nd:YAG pulse xenon lamp
spot size 0.2-3.0mm
Laser wavelength 1064nm
pulse width ≤15ms
laser power 300W
Pulse frequency ≤50Hz
Laser output focal length 150mm
Laser cooling water-cooling
Observation system Standard CCD
Fiber length 5 meters (standard)
Power consumption of the whole machine ≤9KW
Equipment size

Main engine 1020*650*1100mm water machine

750*600*920mm



Sample

CNC platform / Semiconductor Red Light Positioning Laser Welding Equipment 0



Packaging & Delivery

1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages

1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
