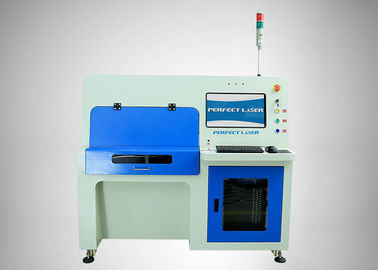

Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device

Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device

Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device
Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device
Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device
Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device
Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device
Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device
Minimum Order Quantity:
1 Unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
5-10 Working Days
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
3000 Unit per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PE-20W/50W(II)
Application:
Laser Scribing
Laser Type:
Fiber Laser
Model Specification:
PE-20W/50W(II) Laser Scribe Machine
Laser Wavelength:
1064nm
Laser Power:
20W
Scribing Line Width:
50um
Scribing Speed:
240mm/s
Scribing Precision:
±10um
Workbench Wide:
200×200mm
Temperature Control Precision:
0.5℃
High Light:
silicon wafer cutting machine , laser scribe machine
Product Description

Authoritarian Flat Dust Removal Device Fiber Laser Scribing Machine



(Model:PE-20W/50W(II))



★ Description



Perfect Laser launched the latest Full-enclosed Type Fiber laser scribe machine with Dust-proof PE-20W/50W (II), the biggest difference between the first generation is that this laser scribe machine is fully enclosed design, machine with dust cover, can avoid environmental pollution, to prevent the operator's vision damage. High output power, high precision scribing, fast speed and could cut curve and straight line graph. Adopting fiber laser as work light source, the two-dimensional work table of the laser scribe machine is controlled by computer, and could do kinds of movement according to what graphics be input in. Mainly used for metal and silicon, germanium, gallium arsenide and other semiconductor material substrate scribing and cutting, machinable solar panels, silicon, ceramic , aluminum foil, etc., the workpiece is fine and beautiful with smooth cutting edges.



Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 0





Main Advantages



1.This solar cell laser scribing machine is fully enclosed design, with dust cover, it can avoid environmental pollution, to prevent the operator's vision damage.

2.Software upgrade: the solar cell laser scribing machine support the arc interpolation,circular arc cutting more smoothly.

3.The wafer scribing machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering.

4.Refactoring workbench processing part, open-type workbench processing area, up-down material more convenient. Removed spare parts from the workbench tablet, higher precision and not easy to deformation.

5. Improvement the screw parts of solar cell laser scribing machine: screw lead increased, so as to expedite the processing speed, guarantee machining accuracy.

6. Direct plug-in light path design of the solar cell cutting machine, higher machining precision, better effect .

7.Serve motor modification: run more smoothly, smaller cutting noise,more humanized design;

8.Authoritarian flat dust removal device, The processing effect of the solar cell cutting machine is better.

9.Improved the laser signal control section of the solar cell cutting machine, software runs more stable and fast.

10.This laser scribe machine is widely used in solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).





Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 1

Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 2

 Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 3Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 4Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 5




★Technical Date



Model specification PE-20W/50W(II) Laser Scribe Machine
Laser wavelength 1064nm
Laser power 20W
Scribing line width 50um
Scribing speed 240mm/s
Scribing precision ±10um
Workbench wide 200×200mm
Temperature control precision 0.5℃
Working power supply 220V/50Hhz/1.5KVA
Workbench Cell automatic adsorption, dust removal
Cooling way High precision and constant temperature circulating water cooling professional integration Air cooling






★Sample Show


Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 6





★Packaging & Delivery


1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.




★Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

Fiber Laser Scribing Machine Authoritarian Flat Dust Removal Device 7 Fiber Laser Scribing Machine With Turnkey Solar Laser Scribing System.pdf
