Full Automatic Channel Letter Bending Machine , Sheet Metal Bending Machines For Sale

Full Automatic Channel Letter Bending Machine , Sheet Metal Bending Machines For Sale

Full Automatic Channel Letter Bending Machine , Sheet Metal Bending Machines For Sale
Full Automatic Channel Letter Bending Machine , Sheet Metal Bending Machines For Sale
Full Automatic Channel Letter Bending Machine , Sheet Metal Bending Machines For Sale
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time:
4-6 Weeks
Payment Terms:
T/T, L/C, PayPal, Western Union
Supply Ability:
300 Units Per Month
Get Best Price
Contact Now Chat Now
Detail Information
Place of Origin:
China
Brand Name:
Perfect Laser
Certification:
CE / ISO / FDA / SGS / TUV
Model Number:
PEL-600
Product Name:
Automatic Channel Letter Notching & Bending Machine
Control Type:
PC Control Type
Material Edge:
Double-Wraped-Edge(2 Sides) & Non Wrapd Edge Material
Max. Processed Thickness:
0.5mm-1.2mm
Max. Processed Width:
30mm-130mm
Angel:
45-135 Degrees
Software:
Perfect Laser Bending Software
High Light:
channel letter bender , channel letter equipment
Product Description

Full Automatic Channel Letter Bending Machine ,

Sheet Metal Bending Machines For Sale



Description
The channel letter bender is a new aluminium bending machine, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.



Product Features

1) Wrapping aluminum bending machine is mainly used for aluminum material: aluminum and aluminum single edge double edge.
2) Wide range of applications: CNC Bending machine can process 2mm strip of aluminum, galvanized steel, iron and other metal sheet.

3) No need of air pump, low voice and environment-friendly.

4) The operating system consist of stepping up, cutting, swing, promotion and demotion of,feed motor, bending motor, diffusion knife. Feeding ,bending and swinging are controlled by stepper motor. On the basis of the length , radian and angle which are figured out by microcomputer, the machine can feed , cut angle and bend precisely.

5) It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting machine to realize the advertisement processing.

6) The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 135 °.

7) A unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.

8) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.

9) High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.

10) Automatically feed, notch for two sides(angel 45-135), and roll Japanese linear module(screw drive), precision motor clamp.


Application

1) Applicable Materials: Aluminum strip bending, stainless steel strip bending, iron bending,galvanized steel bending ect.

2) Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.

The automatic channel letter bending machines are also called aluminium bending machine,automatic channel letter bending machines,3D letter bending machines, bending machine price,aluminum bending brake for sale.



Specifications

Model:

PEL-500

PEL-600

Control Type

   PC Control Type
(Price includes 1 set of Computer)

Bending Material:

Aluminum, Single-fold-edge
Aluminum, Double-fold-edge Aluminum

Aluminum, Stainless Steel,
Carbon Steel, Mild Steel,
Galvanize Plate, Iron, Single-fold-edge Aluminum,
Double-fold-edge Aluminum

Aluminum Strip

Single-Fold-Edge Aluminum

Double-Fold-Edge Aluminum, Image

Stainless Steel

×

Carbon Steel

×

Mild Steel

×

Galvanized Plate

×

Iron Sheet

×

Material Edge

Double-Folded-Edge (2 sides) &
Non Folded Edge Material (1 side)

Max. Processed Thickness:

Aluminum Thickness:
0.45mm-2mm

Aluminum<2mm, Stainless steel <0.5mm,
Galvanize Plate <0.8mm

Max. Processed Width:

30mm-130mm

Angel

45-135 degrees

360 degree rotary notching,
30-150 degrees angle

Material feeding and bending

Automatic

Software

Perfect Laser Bending Software

Voltage:

AC 220V,50HZ (Special power, need to add transformer)

Current

10A

General Power

1200W

1200W

The Use Of Power

700W

800W

Size:

1850mm×900mm×2200mm

1970mm×750mm×1650mm

Weight:

480 kgs

Import File Format

AI

Feed speed:

5 Meter / Min

Precision

0.05 mm

Remark:

Remark: Price is including PC and PC screen.

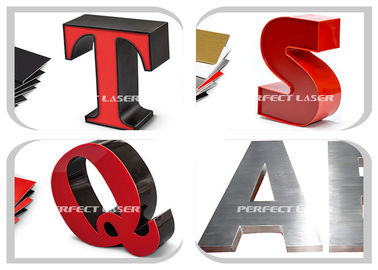

Sample Show
